KS-CPE653 is an long range 5.8G outdoor PTP/PTMP in Wi-Fi6 standard.
IPQ5018 Qualcomm chipset, the wireless speed is up to 2400Mbps;
High power design plus 13dBi high gain antenna, it is 400Mbps+ throughput in 5KM distance;
Equipped with Gigabit RJ45 port, support 24V PoE, powered by 100 meters LAN cable, IP65 water-proof and lightning protection, it can be installed any place to transmit the long range and high speed data.

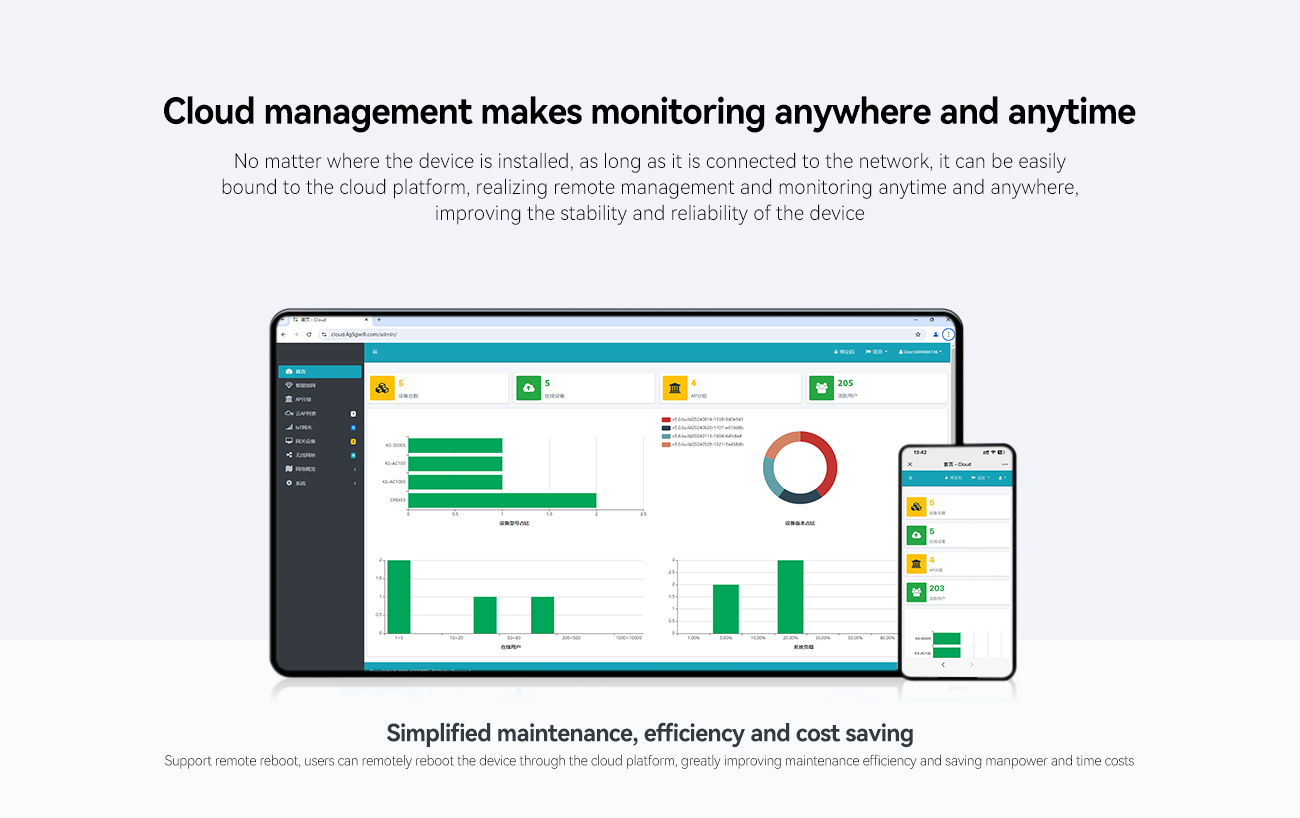

Managed by AP cloud, simply to remote access the WEB GUI. It is easy to manage the wireless AP in rural area, maintenance cost-saving always.

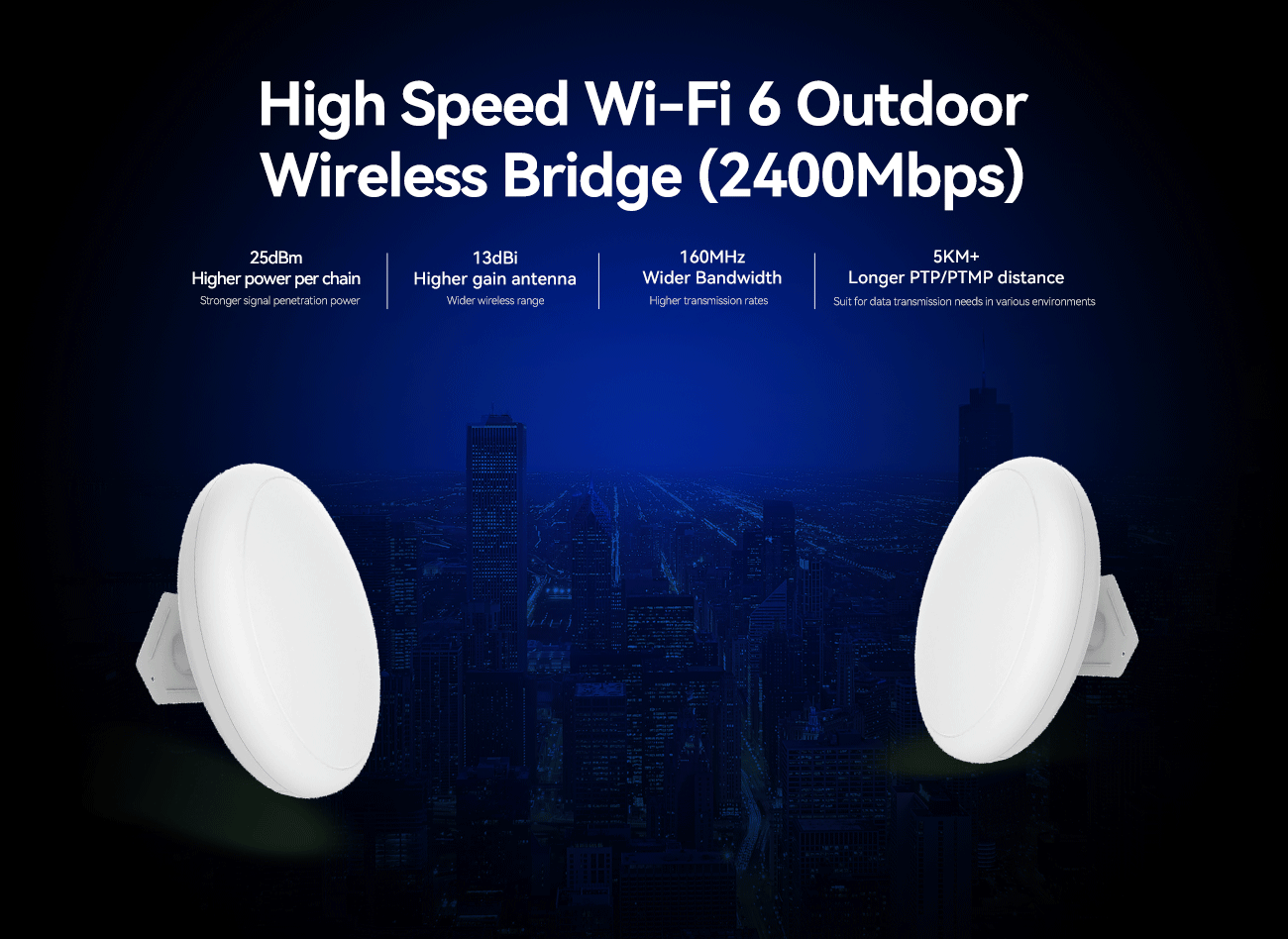

High Speed Wi-Fi 6 Outdoor Wireless Bridge (2400Mbps)
Testing distance: 5KM
Signal strength: -65dBm
Throughput: TX: 400Mbps, RX: 334Mbps
Bandwidth: 160MHz

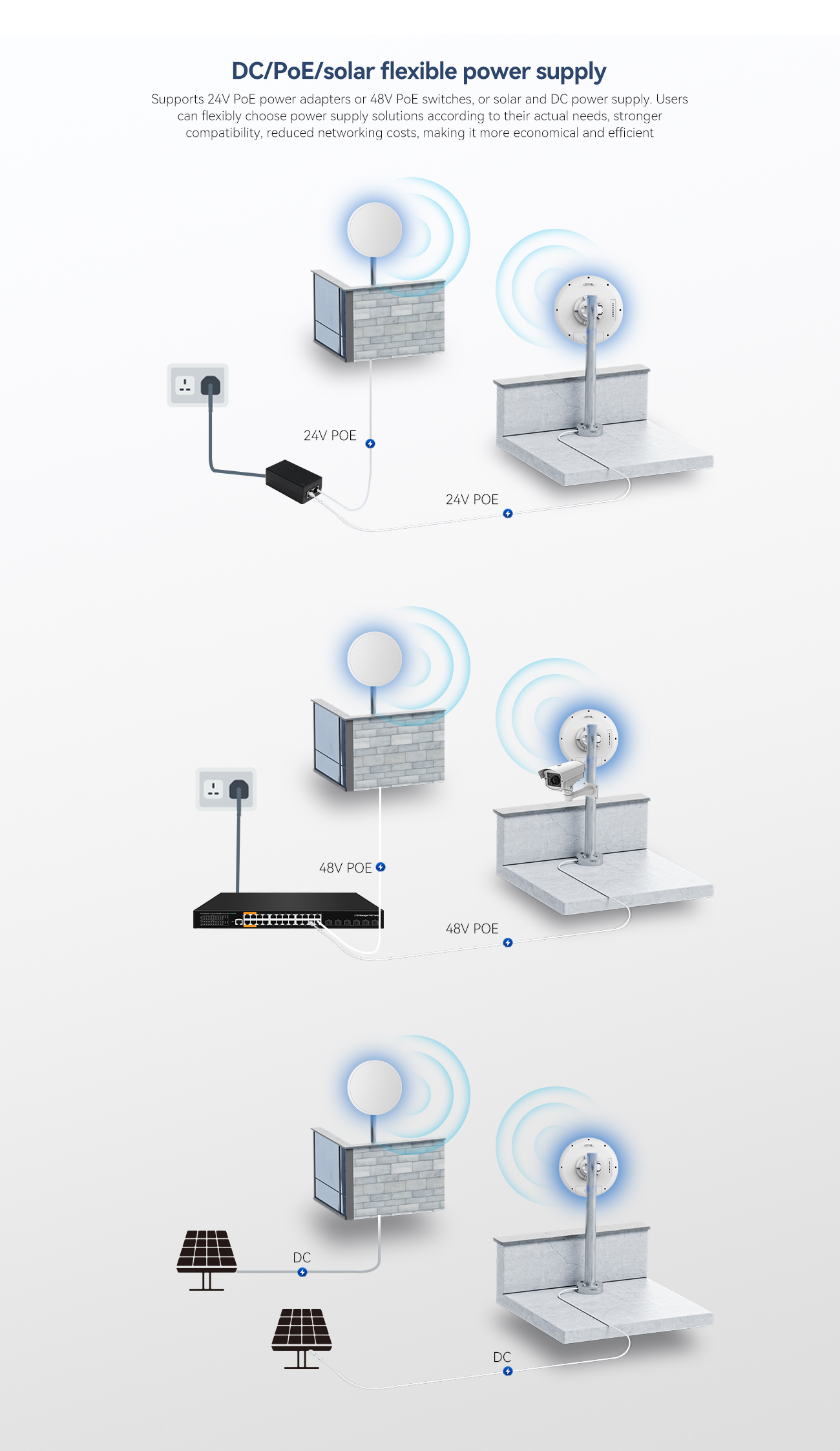

DC/PoE/solar flexible power supply
Supports 24V PoE power adapters or 48V PoE switches, or solar and DC power supply.
Users can flexibly choose power supply solutions according to their actual needs.
Stronger compatibility, reduced networking costs, making it more economical and efficient

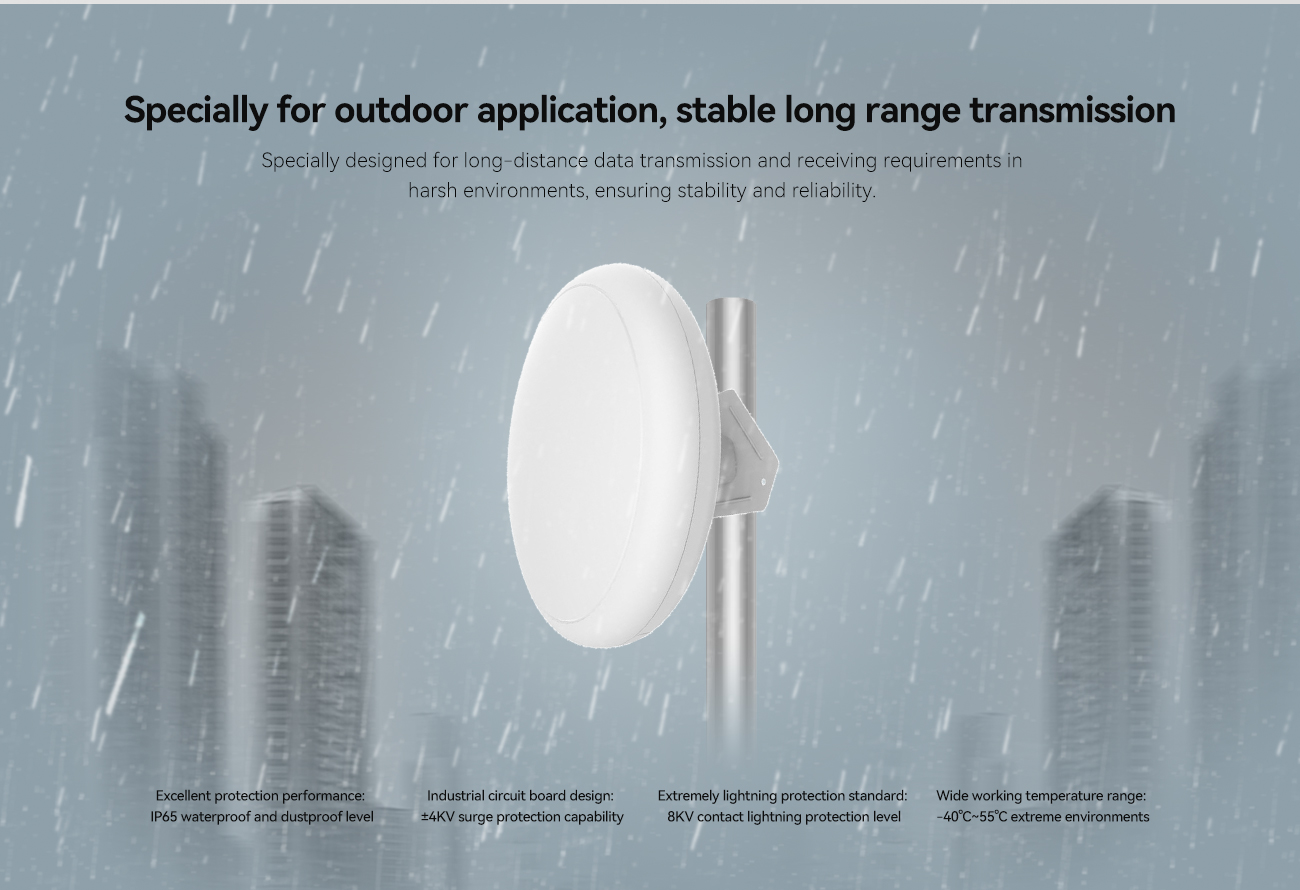

Specially for outdoor application, stable long range transmission
Specially designed for long-distance data transmission and receiving requirements in harsh environments, ensuring stability and reliability.
Excellent protection performance: IP65 waterproof and dustproof level
Industrial circuit board design: ±4KV
Wide working temperature range: -40℃~55℃
Easy to install, Plug and Play
The working mode is changed through hardware one-click bridge, the visible signal strength LED indicator simplifies the adjustment of installation angles. The universal wheel installation head+holding pole design facilitates users to adjust the angle up, down, left, right, allowing them to complete equipment debugging and installation in a short time without professional knowledge

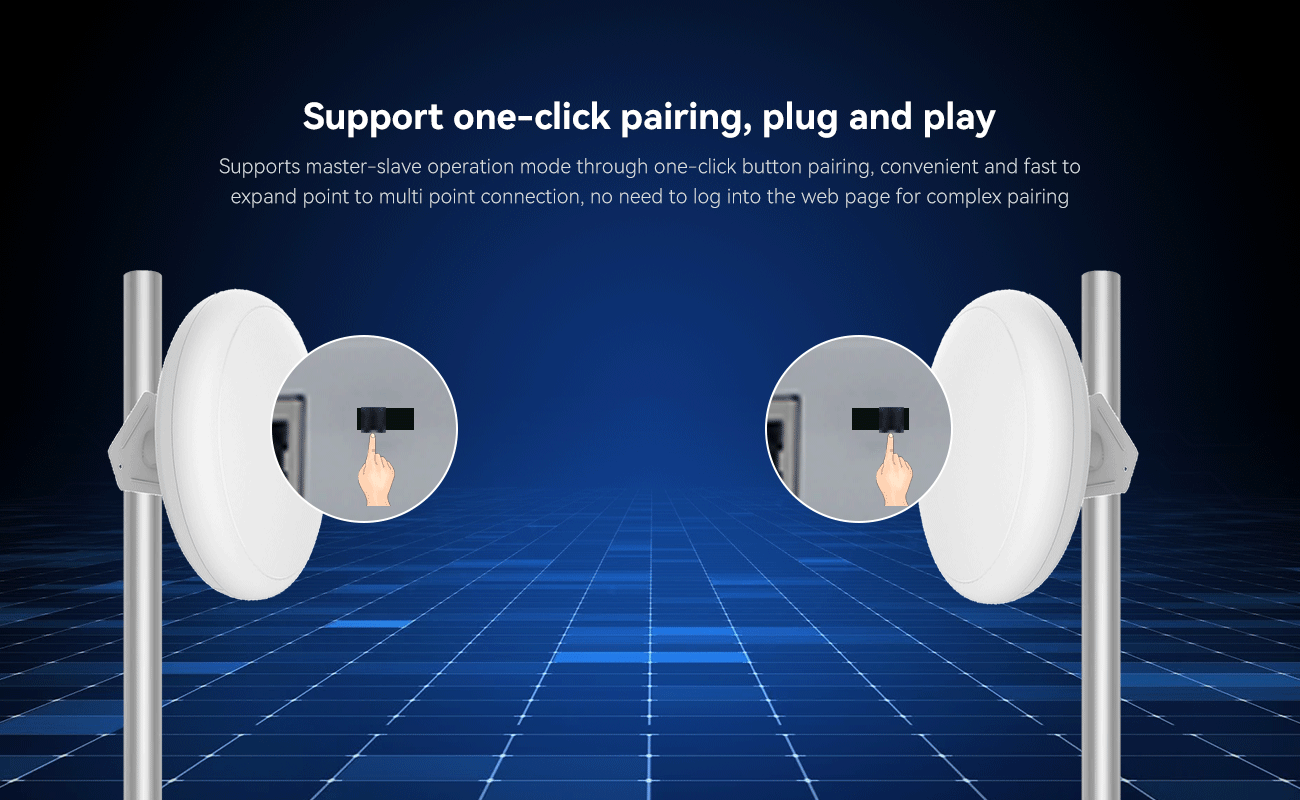

Support one-click pairing, plug and play
Supports master-slave operation mode through one-click button pairing, convenient and fast to expand point to multi point connection, no need to log into the web page for complex pairing
Hardware Spec: | |
Model | KS-CPE653 |
WiFi Standard | IEEE 802.11b/g/n/ac/ax |
CPU | IPQ5018 + QCN6102+QCA8337 |
Flash | 8MB_SPI_NOR Flash+128MB_SPI_L NAND Flash |
Memory | 512MB (It will be 256MB in the future) |
Frequency | 5.8G: 5150 - 5850MHz |
Data Rate | 2400Mbps @5.8GHz |
RF Power | 5.8G: 11n≤27 dBm/chain; 11ac≤23 dBm/chain; 11ax≤18 dBm/chain; |
Ethernet | 1*1G LAN port, RJ-45; |
1*1G WAN, PoE Input，RJ-45; | |
Button | Reset button |
Operation mode button | |
Interface | DC 12V/1.5A |
Operation mode switch | AP/Repeater |
LED Indicator | SYS （Red） |
5.8G（Blue） | |
Antenna | 13dBi panel antenna |
Power Consumption | <13W |
Power Supply | PoE, 24V passive PoE |
Surge | Comm mode: ±4KV； Differental mode: ±2KV |
ESD | Air: 15KV, Contact: 8KV |
Water-Proof | IP65 protection level |
Working temperature | Working Temperature:-40℃～55℃ |
Storage temperature: -40℃～70℃ | |
Humidity | 5%～95% |
Size | 200*54.8cm |
Firmware Features | |
Operation mode | AP, repeater, WDS |
Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3 |
IP Protocol | IPv4/IPv6 |
Device Management | GUI web management and cloud management |
Support firmware back-up, restore, reset, upgrade | |
Packing List
| KS-CPE653*1 13dBi panel antenna*1 Cat 6 LAN Cable×1（1 meter） User Manual×1
|
