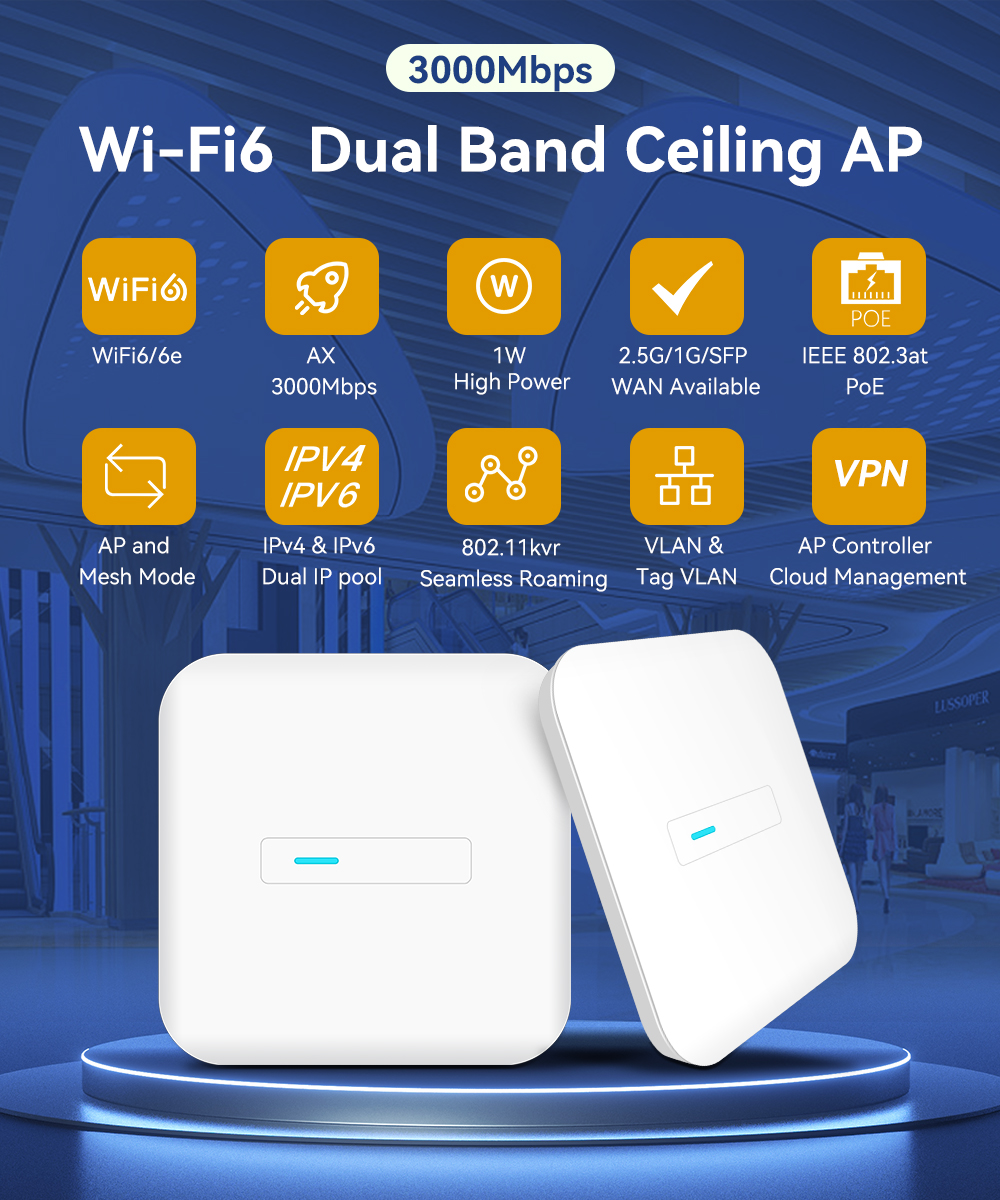

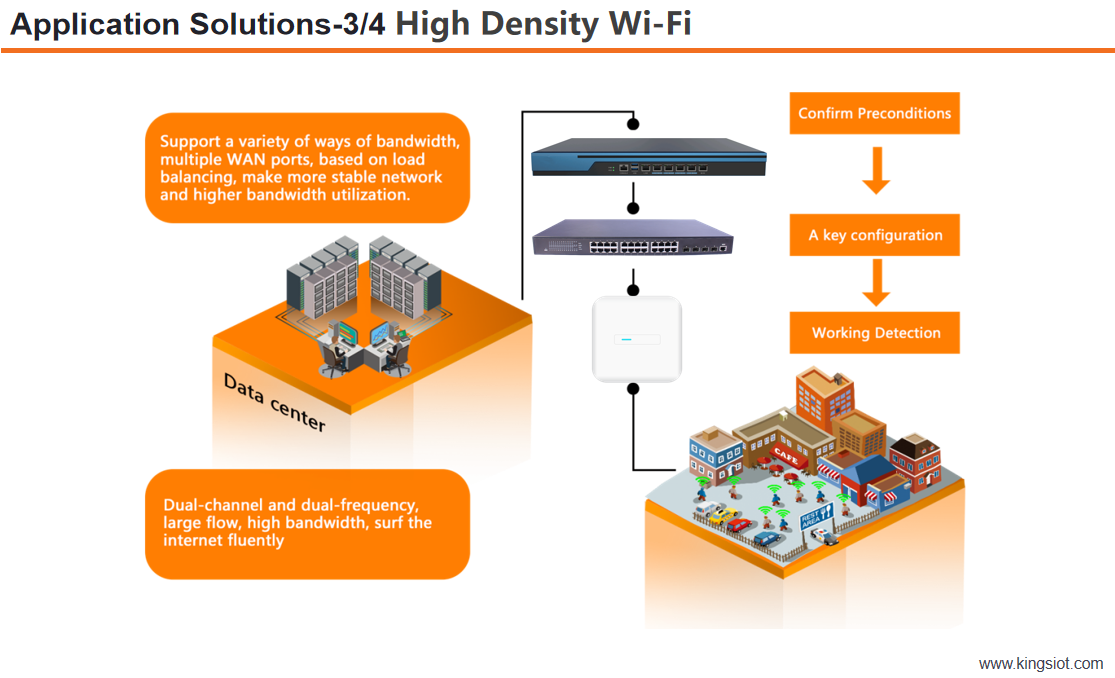

KS-AP625 is high RF power, high speed, high performance Wi-Fi6 ceiling wireless access point support AP, router and Easy mesh. Equipped with Qualcomm IPQ5018 enterprise chipset, it is 2.4G+5.8G dual band, 160MHz bandwidth, up to 3000Mbps data rate, support 802.1kvr seamless roaming, up to 150 users access and enjoy the high speed Ethernet. Besides that, it support Mesh, VPN, Work with AC controller and cloud, it support central and remote management, captive portal authentication, SMS function, SD-LAN, it is the best choice for wireless coverage in hotels, offices, schools ect...

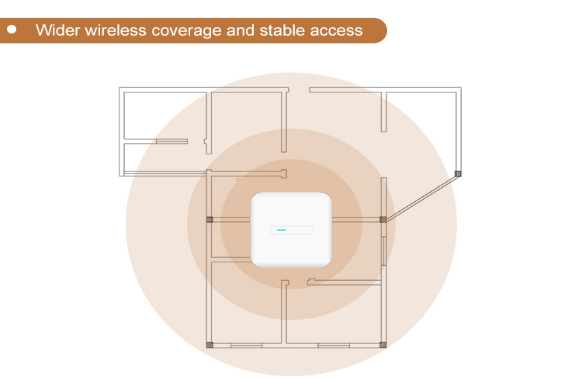

lCeiling mounted design, 1W high power amplifier in PCBA, unobstructed signal, more wireless range and stable wireless connections.
lHigh performance enterprise CPU, world-wide branded electronic IC, allow 150+ users to access, performance better as the high quality.

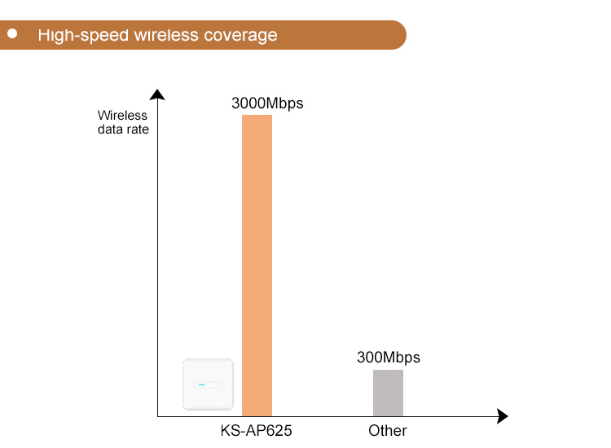

l Dual bands, date rate up to 3000Mbps, 1G or 2.5G optional Ethernet port support PoE, so easy apply to various network environments to achieve high-speed wireless coverage

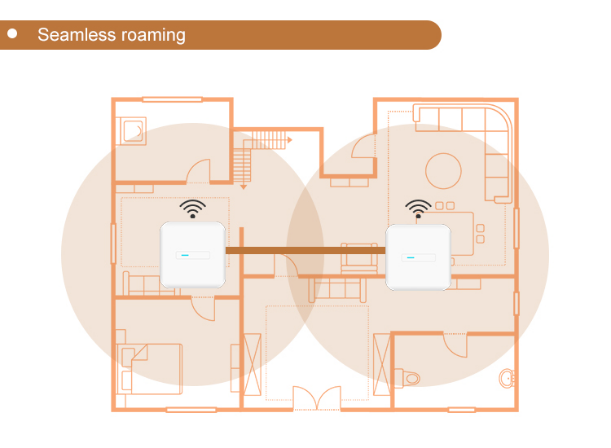

lSupport 802.11kvr seamless roaming, users automatically switch to high stability signal but no Wi-Fi dropping

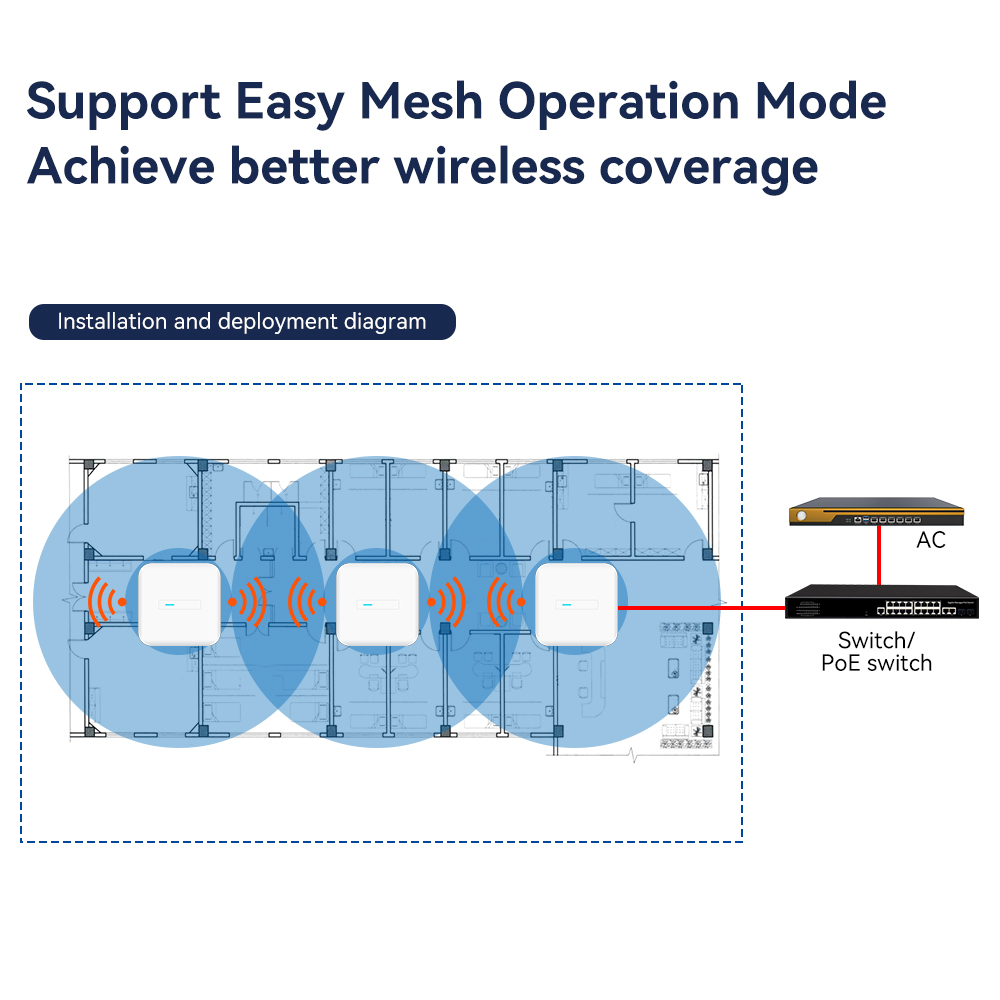

lSupport Easy Mesh, easy to expand the wireless network, achieve better wireless coverage
lSupport WPA3 and 802.1x advance encryption, guard wireless network security all the time

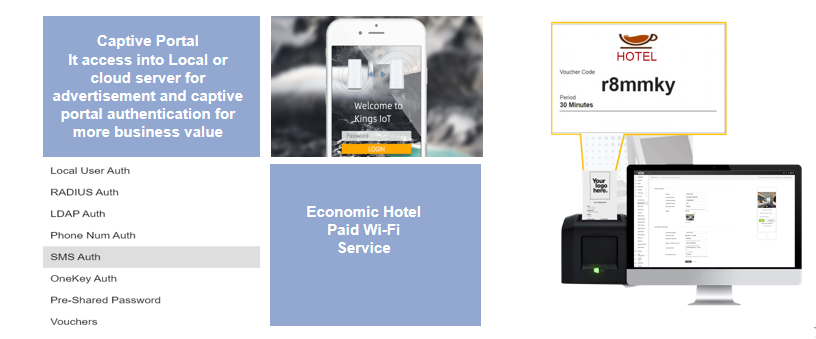

lStrong Multiple authentication like User Auth, Radius Auth, LDAP Auth, SMS Auth, Pre-shared Key auth...
Provide advertisement, authentication, billing functions.
Hardware Spec: | |
Model | KS-AP625 |
WiFi Standard | IEEE 802.11b/g/n/ac/ax |
CPU | IPQ5018 + QCA8081 PHY chipset + QCN6102 QCN6122 |
Flash | 8MB_SPI_NOR Flash+128MB_SPI_L NAND Flash |
Memory | 512MB |
Frequency | 2.4G: 2400 - 2484MHz |
5.8G: 5150 - 5850MHz | |
Data Rate | 600Mbps @ 2.4GHz; 2400Mbps @5.8GHz |
RF Power | 2.4G 11b≥28dBm/chain, 11n HT20≥24dBm/chain, 11ac HT40≥23dBm/chain, 11ax HT40≥17dBm/chain 5.8G 11n≥27 dBm/chain; 11ac≥23 dBm/chain; 11ax≥18 dBm/chain; |
Access Users | 150+ Clients |
Ethernet | Optional 1: 1*2.5G WAN, PoE Input，RJ-45; 1* 10/100/1000Mbps LAN,RJ-45 |
Optional 2: 1*1G WAN, PoE Input，RJ-45; | |
Button | Reset button |
LED Indicator | SYS （Green） |
2.4G（Green） | |
5.8G（Green） | |
Antenna | Build in 5dBi MIMO Antenna |
Power Consumption | <23W |
DC Power Supply | Input 12V / 2A （DC); 2.5GE/PoE, IEEE 802.3at standard |
MTBF | ≥85000H@25℃ |
Working temperature | Working Temperature:-20℃～55℃ |
Storage temperature: -40℃～70℃ | |
Humidity | 5%～95% |
Dimensions | 195x195x30mm |
Firmware Features | |
Operation mode | AP, router and mesh |
Wireless Functions | Multiple SSID functions: 2.4GHz: 8; 5.8GHz: 8. |
Support SSID hidden | |
Support seamless roaming, 802.11kvr standard. | |
Support 5G Prior for a faster Ethernet. | |
Support MAC filter, IP filter | |
VPN | Open VPN and VPN Client (L2TP PPTP), IPSec |
Firewall | Port mapping, Host mapping, DMZ, access control, |
Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3 |
Authentication | Captive portal authentication, Billing, PPPoE authentication, WiFidog authentication, CMCC portal, Radius server, LADP server, SMS authentication; |
IP Protocol | IPv4/IPv6 |
SD-WAN | Support when it work with cloud server |
SD-LAN | Support when it work with AC controller |
AP management | AP group, RF adjusting, network topology generate, RF power setting, channel setting, IP address setting |
Device Management | GUI web management |
AC controller central and remote management | |
Cloud central and remote management | |
Support firmware back-up, restore, reset, upgrade | |
Packing List
| KS-AP625*1 Cat 6 LAN Cable×1（1 meter） User Manual×1 |
