M18 is an high stability wireless mesh router support mobile APP management and easy mesh; Comply to Wi-Fi6 standard, 2.4G+5.8G dual band concurrent, 1800Mbps high speed for more users; Support WPS switch connection, slave nodes easy to connect to the master node by press the WPS switch, realize seamless wireless coverage to every corner in home, villa, bigger house, small office;
Main Features:
Vertical structure design, simplicity white color, easy to install, ingenious integrated into any decoration house, villa or office
Support WPS switch connection, No configuration, slave nodes automatically pairing with master node; Enjoy high speed wireless connection even no networking skills.

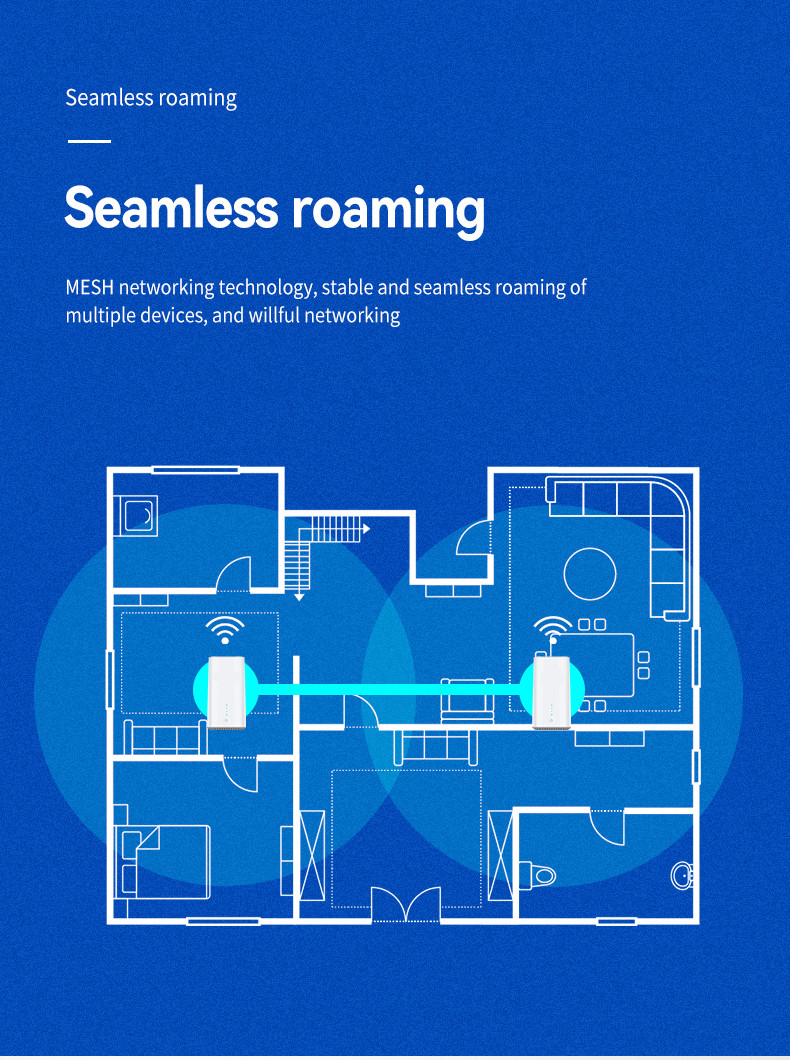

Support 802.11kvr seamless roaming, users automatically switch to high stability signal but no Wi-Fi dropping
Support Watchdog hardware protection, WPA3 and 802.1x advance encryption, guard wireless network security all the time
Support mobile APP, view and manage the wireless network anytime and anywhere
Strong technical support in customer firmware development
M18 is an high stability wireless mesh router support mobile APP management and easy mesh; Comply to Wi-Fi6 standard, 2.4G+5.8G dual band concurrent, 1800Mbps high speed for more users; Support WPS switch connection, slave nodes easy to connect to the master node by press the WPS switch, realize seamless wireless coverage to every corner in home, villa, bigger house, small office;
Hardware Spec: | |
Model | M18 |
WiFi Standard | IEEE 802.11b/g/n/ac/ax |
CPU | MT7621DAT+MT7905N+MT7975DN |
Flash | 16MB |
Memory | 128MB DDR3 |
Frequency | 2.4G: 2400 - 2484MHz |
5.8G: 5150 - 5850MHz | |
Data Rate | 600Mbps @ 2.4GHz; 1200Mbps @5.8GHz |
RF Power | ≤ 21dBm |
Access Users | 100+ Clients |
Ethernet | 1*10/100/1000Mbps WAN |
2* 10/100/1000Mbps LAN | |
Button | Reset button |
MESH Button | |
Switch | MESH+ LED Switch |
LED Indicator | MESH+ Working Status (breathing light) |
2.4G Wi-Fi | |
5.8G Wi-Fi | |
System Status | |
Power Status | |
Antenna | Build in 5dBi MIMO Antenna |
Power Consumption | <15W |
DC Power Supply | 12V/1.5A |
MTBF | ≥525，600H |
Working temperature | Working Temperature:-20℃～55℃ |
Storage temperature: -30℃～70℃ | |
Humidity | 5%～95% |
Dimensions | 108mmX108mmX216mm |
Firmware Features | |
Operation mode | Router/Mesh |
Wireless Functions | Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4. |
Support SSID hidden | |
Support seamless roaming, 802.11kvr standard. | |
Support 5G Prior for a faster Ethernet. | |
Support MAC filter | |
Support parental control to limited the online time and Children behavior. | |
Support client isolation to improve the wireless stability | |
VPN | VPN Passthrough and VPN Client (L2TP PPTP) |
Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3 |
Easy Mesh | Support easy mesh and WPS connection, complete the mesh WiFi connection no GUI configure |
TR069 | Support |
IP Protocol | IPv4/IPv6 |
Device Management | Mobile APP Control |
GUI web management | |
Support firmware back-up, restore, reset, upgrade | |
Packing List
| M18*1 Power adapter×1（12V1.5A) Cat 6 LAN Cable×1（1 meter） User Manual×1 |
