KS-LTE200 is a high high performance industrial use 4G router. Support 4G Cat 4, 150Mbps in Downlink and 50Mbps in Uplink; With metal housing, the hardware support , DC 9-48V wide voltage input with reverse protection; built-in surge and ESD protection on PCB board, easily adapt to various harsh environments and ensure long-term stable and reliable operation.
Support RS232/485 serial port device access, pass serial port data to internet servers for real-time data monitoring.
Support ESIM chip card and external plug-in card software switching, support 4G TDD/FDD and Broadcasting network access, wired & 4G backup, to keep network always alive.
Provide 802.11b/g/n WiFi 300M wireless access, with high-gain antenna, coverage up to 30 meters in open environments; and provide 10/100Mbps wired access, standby capacity up to 32 people.
Support PPTP, L2TP VPN, IPSEC for rapid remote networking, combined with virtual servers to achieve fast data exchange.
1. Wi-Fi: 2.4G 300Mbps, 5dBi antenna, more wireless range;
2. 4G: 4G module on board, can be Qualcomm chipset, can be ASR chipset, work with global bands;

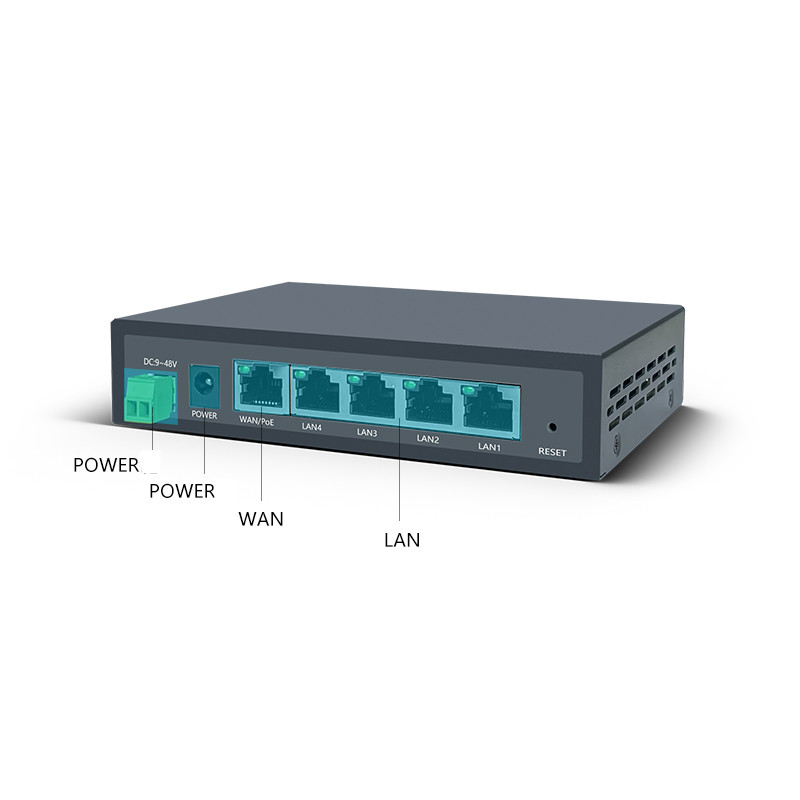

3. Multiple Hardware Interface:
WAN/LAN Port: 1*10/100Mbps adaptive Ethernet port
LAN: 4*10/100Mbps adaptive Ethernet ports

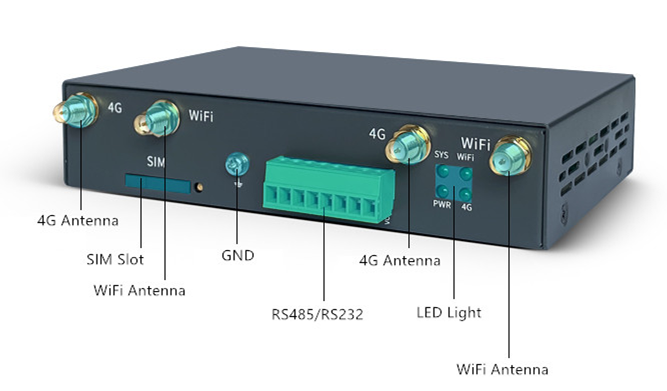

1*RS232/485 serial port
1*MINI-SIM card
1*DC 9~48V power input interface
4. Multiple Hardware Interface Multiple Hardware Interface: -40℃~70℃
Hardware Spec | |
Main chipset | MT7628NN |
Clock Frequency | 575MHz |
Memory | 128MB |
Flash | 16MB |
Wi-Fi | 802.11b/g/n, 2.4GHz, 300Mbps MIMO |
Device interface | WAN/LAN Port: 1*10/100Mbps adaptive Ethernet port LAN: 4*10/100Mbps adaptive Ethernet ports 1*RS232/485 serial port 1*MINI-SIM card 1*DC 9~48V power input interface |
Button | RESET, press and hold for 5 seconds to restore factory settings |
Indicator | POWER, SYS, WIFI, 4G, Ethernet port |
Antenna | External 5dBi 4G antenna *2 External 5dBi wifi antenna*2 |
Power | DC 9-48V/Phoenix terminal interface，48V PoE |
Operating/Storage Temperature | -40℃～70℃/-40℃～70℃ |
Operating/Storage Humidity | 5%～95%（Non-condensing） |

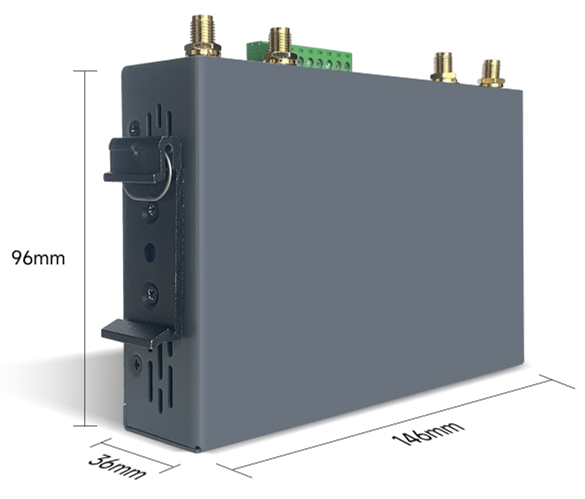

Size | 14*9*3cm |
Weight | 0.3kg |
WiFi Spec | |
Frequency Range | 802.11b/g/n:2.4~2.4835GHz |
Channel | 1、2、3、4、5、6、7、8、9、10、11、12、13 |
Modulation | 802.11b: DSSS (DQPSK, DBPSK, CCK) 802.11g: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) |
Transmission Rate | 11b up 11Mbps,11g up 54Mbps,11n up 300Mbps |
Receiver Sensitivity | 11b：≤-90±1.5dBm @1Mbps，≤-84±1.5dBm @11Mbps 11g：≤-86±1.5dBm @6Mbps，≤-69±1.5dBm @54Mbps 11n 20MHz：≤-85±1.5dBm @MCS0，≤-67±1.5dBm @MCS7 11n 40MHz：≤-82±1.5dBm @MCS0，≤-64±1.5dBm @MCS7 |
Transmit Power | 11b: ≥20±1.5dBm@11Mbps 11g: ≥20dBm±1.5dBm@54Mbps 11n: ≥20dBm±1.5dBm@MCS7 |
Software Functions | |
Working Mode | 4G/Router |
Number of connected users | 32 Peoples |
Management Mode | English WEB Remote Management, Cloud Platform Remote Management |
Status | Internet Status, LAN Status & Wireless Status & CPU & Memory Utilization, Connected Users |
Network | Internet: System Mode (4G, Router Mode), SIM (SIM Card, eSIM), 4G Network Switch, Network Mode LAN: IP Address/Subnet Mask Settings, DHCP Address Pool APN: Built-in Four Sets of APN Settings |
Wireless | Basic Settings: Wireless Switch, Wireless Name, Wireless Encryption, Wireless Password, 2.4G Guest Network Advanced Settings: Country, Wireless Mode, Wireless Channel Bandwidth, Wireless Channel, Transmit Power, 2.4G Hidden |
4G Traffic | Used, Residual, Month Used, Day Used, Days to monthly settlement，Monthly Data Limit, Month Settlement Day, Traffic Control Switch Setting |
Advance | Parental Control、Blacklist、Static Routing、Virtual Servers、VPN Client(PPTP、L2TP)、IPSEC(Policy、SA)、Probe Setting |
Platform settings | 485/232 Pass Through, Alibaba Cloud 485-MQTT Transparent Transmission Setting |
System | Configuration Management: Software Version, Firmware Upgrade, Reboot, Reboot Scheduled, Backup Configuration, Configuration Restore, Restore factory configrations System Time: NTP Client, NTP Server, Time Zone Setting Administrator Password |
Quick Setup | Internet-WiFi-Admin Password |
4G Data Rate | |
4G protocol | Cat4 |
3G/4G bands for China/India | B1/B3/B5/B8@FDD; B34/B38/B39/B40/B41@TDD; B1/B5/B8@WCDMA; B3/B8@GSM |
3G/4G bands for Europe/Middle East | B1/B3/B7/B8/B20/B28@FDD; B38/B40/B41@TDD, B1/B8@WCDMA; B3/B8@GSM |
3G/4G bands for Australia | B1/B2/B3/B4/B5/B7/B8/B28/B66@FDD; B40@TDD, B1/B2/B4/B5/B8@WCDMA; B2/B3/B5/B8@GSM |
LTE-FDD Speed | Downlink: 150Mbps, Uplink: 50Mbps |
