KS-LTE417 is an high speed, high performance, multiple functions LTE CPE. Comply with IEEE 802.11n wireless standard, the wireless speed up to 300Mbps in 2.4GHz. Support 4G FDD/TDD, WCDMA and GSM networking, plug and play, easy to have the high speed wireless network for 16+ end users. Support VPN, optional VoLTE voice function, it is best choice for ISP, home and some chain stores.

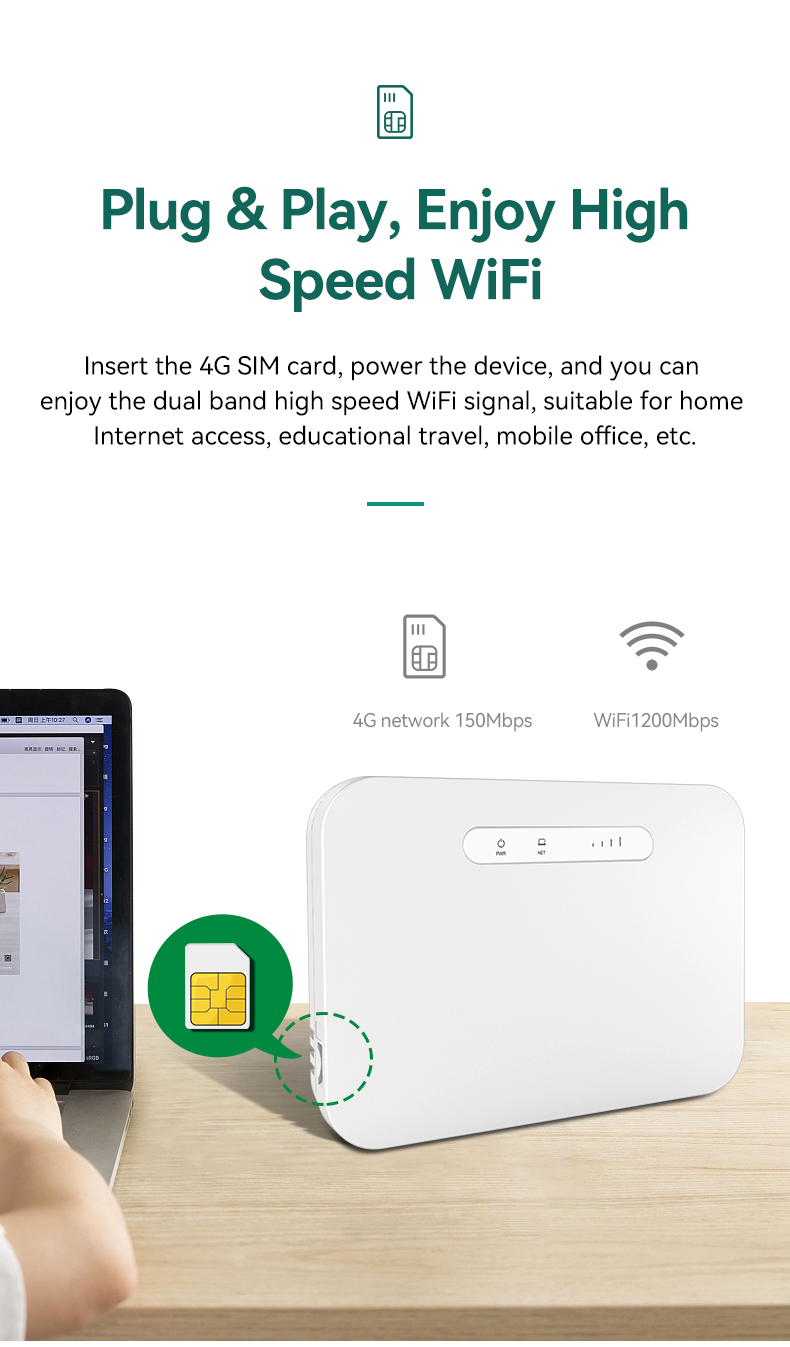

Support 4G/WCDMA/GSM network, plug and play, easy to install;
2.4GHz, the wireless speed up to 300Mbps, 32+ end users can access into it;
Support DC, 3600mAh battery optional, movable wireless router make network available everywhere;
Support VPN, more functions for more application scenes;

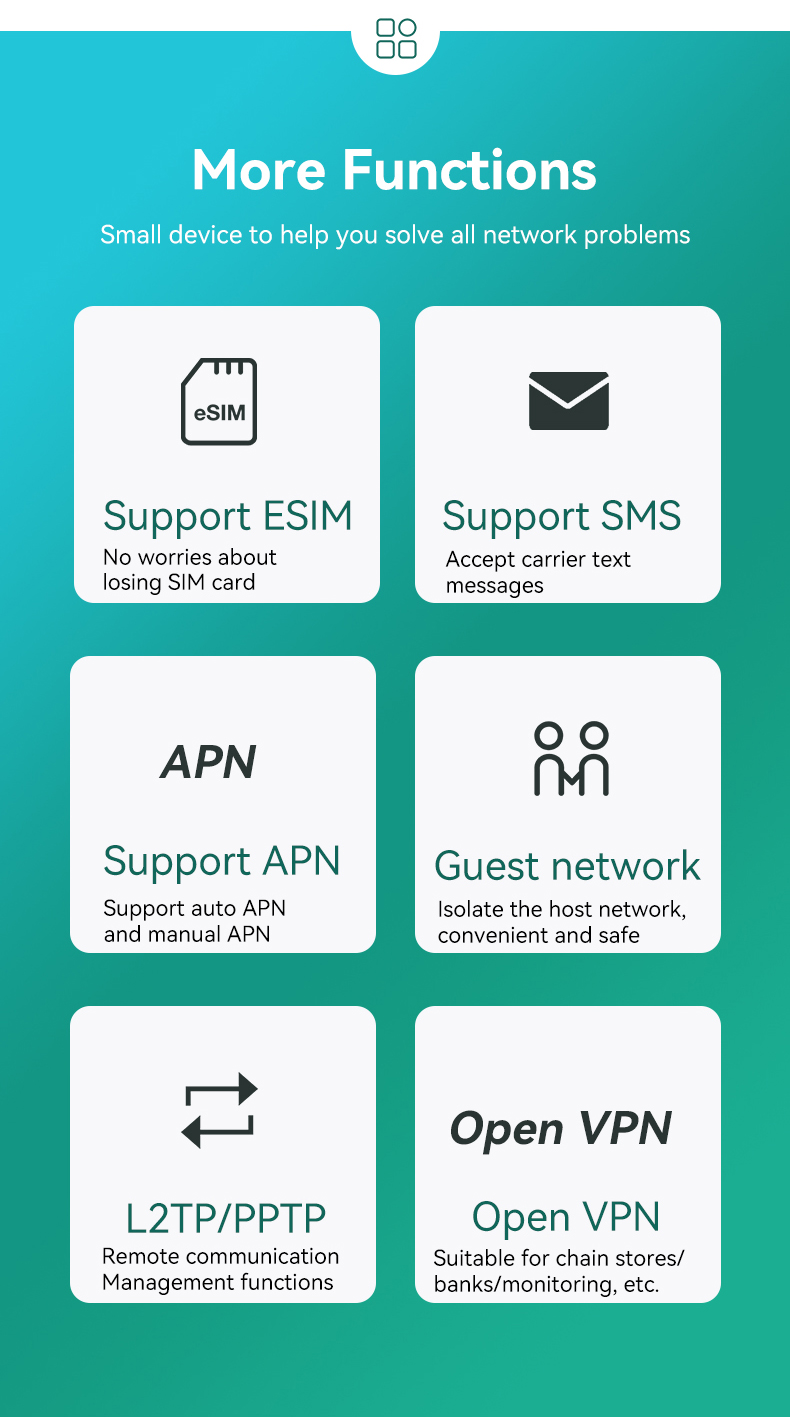

Optional to support eSIM and SIM lock.
Provide deeply firmware support, help customer to develop their own firmware;
Hardware Spec: | |
Model | KS-LTE417 |
WiFi Standard | IEEE 802.11b/g/n |
CPU | MT7628 |
Flash | 8MB |
Memory | 64MB |
Frequency | 2.4G: 2400 - 2484MHz |
Data Rate | 300Mbps @ 2.4GHz |
RF Power | 2.4G≥20 dBm/chain |
Access Users | 16+ Clients |

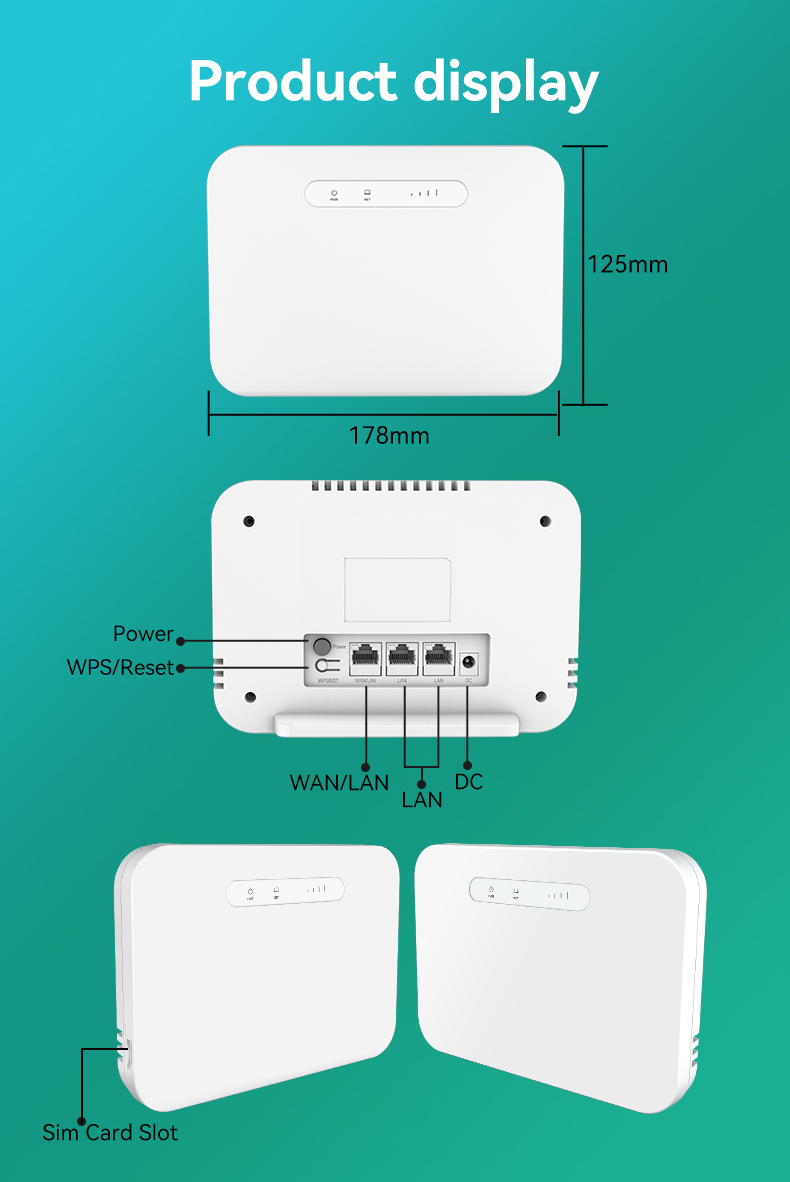

Interface | 1*10/100Mbps RJ45 port, WAN/LAN port |
2*10/100Mbps RJ45 ports, LAN ports Optional: 1*10/100Mbps RJ45 port, LAN port; 1*RJ11 port support VoLTE; | |
1*SIM card slot for 3G/4G SIM card | |
1*Power button to switch on/off power | |
1*Reset button/WPS button | |
1*DC power injector, 12V/1A power adapter | |
LED Indicator | Power |
ETH | |
4G Signal strength (S1~S4) | |
Wi-Fi Antenna | Build in 5dBi MIMO Antenna |
4G Antenna | External 4G detachable antenna, 5dBi |
Power Consumption | <12W |
DC Power Supply | Input 12V / 1A （DC); |
Battery | 3600mAh (Optional) |
MTBF | ≥52000H@25℃ |
Working temperature | Working Temperature:-20℃～45℃ |
Storage temperature: -40℃～70℃ | |
Humidity | 5%～95% |
Dimensions | TBD |
Firmware Features | |
Operation mode | WAN/4G |
Wireless Functions | Multiple SSID up to 4 |
Support SSID hidden | |
Support MAC filter | |
Optional support VoLTE for phone call function（optional） | |
Support client isolation to improve the wireless stability | |
VPN | VPN Pass through and VPN Client (L2TP PPTP) |
Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP |
IP Protocol | IPv4 |
Device Management | GUI web management |
Support firmware back-up, restore, reset, upgrade | |
Packing List
| KS-LTE417*1 Power Adapter*1 LAN Cable×1（1 meter） User Manual×1 |
4G Data Rate | |
4G protocol | Cat4 default, optional to support Cat6 |
3G/4G bands for China/India | B1/B3/B5/B8@FDD;B34/B38/B39/B40/B41@TDD; B1/B5/B8@WCDMA; B3/B8@GSM |
3G/4G bands for Europe/Middle East | B1/B3/B7/B8/B20/B28@FDD; B38/B40/B41@TDD, B1/B8@WCDMA; B3/B8@GSM |
3G/4G bands for Australia | B1/B2/B3/B4/B5/B7/B8/B28/B66@TDD; B40@TDD, B1/B2/B4/B5/B8@WCDMA; B2/B3/B5/B8@GSM |
LTE-FDD Speed | Downlink: 150Mbps, Uplink: 50Mbps |
LTE-TDD Speed | Downlink: 130Mbps, Uplink: 35Mbps |
DC-HSDPA/HSUPA | Downlink: 42Mbps, Uplink: 5.76Mbps |
GSM | Downlink: 384kbps, Uplink: 384kbps |
