KS-5G-XM520 is an high speed 11ax Wi-Fi6 standard 5G router with SIM card slot, with Unisoc chipset, dual band, maximum 2.2Gbps in 5G speed, plug and play, satisfied with growing-up high speed mobile connections requirements and provides the fast speed beyond your imagination.
Main Features:
Multiple Mobile Network Compatible
Support 5G NSA+SA, 4G LTE-TDD+LTE-FDD, 3G WCDMA mobile networks;
Compatible global bands, support all SIM cards
Plug and play but more powerful
Plug and play, no wiring, can be installed anywhere in the room, keep the room tidy;
Compared to 5G hotspot, this 5G CPE is allow 50+users to access and enjoy the high speed, more powerful
High speed and competitive price
The speed is higher than most of items in Qualcomm chipset, but price is more competitive in the market.
The latest 802.11ax Wi-Fi6 standard, the wireless speed is 1800Mbps
Combined 2.4G and 5.8G SSID together, 5.8G first, allow users connect to the fastest wireless signal always
Better Signal, more wireless range
There is large space on the housing to install the 5G and Wi-Fi antenna, more gain and less interference; More than 150Mbps data rate in 35 meters distance with one wall;
Standing design, beautiful and generous appearance, comfortable hand feel, easy operation
Multiple application environment
Support VPN L2TP/PPTP, easy to achieve VPN remote control;
Besides home use, this 5G CPE is publicly used in office, banks, chain stores, outdoor camping etc.

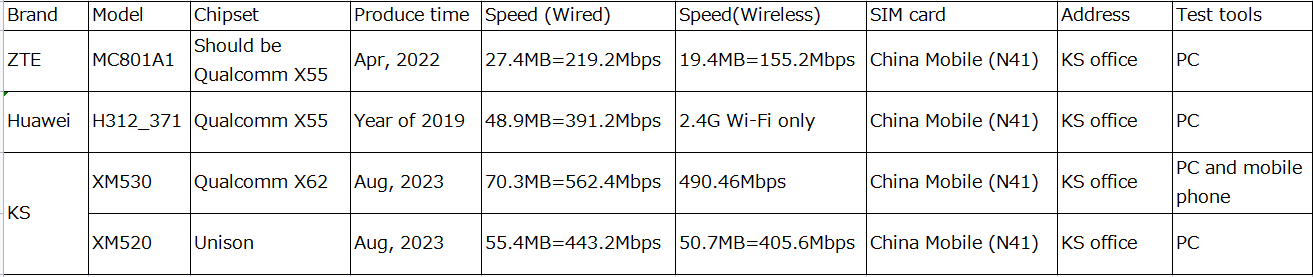

Comparative test report
Multiple Mobile Network Compatible
Support 5G NSA+SA, 4G LTE-TDD+LTE-FDD, 3G WCDMA mobile networks;
Compatible global bands, support all SIM cards
Plug and play but more powerful
Plug and play, no wiring, can be installed anywhere in the room, keep the room tidy;
Compared to 5G hotspot, this 5G CPE is allow 50+users to access and enjoy the high speed, more powerful
High speed and competitive price
The speed is higher than most of items in Qualcomm chipset, but price is more competitive in the market.
The latest 802.11ax Wi-Fi6 standard, the wireless speed is 1800Mbps
Combined 2.4G and 5.8G SSID together, 5.8G first, allow users connect to the fastest wireless signal always
Better Signal, more wireless range
There is large space on the housing to install the 5G and Wi-Fi antenna, more gain and less interference; More than 150Mbps data rate in 35 meters distance with one wall;
Standing design, beautiful and generous appearance, comfortable hand feel, easy operation
Multiple application environment
Support VPN L2TP/PPTP, easy to achieve VPN remote control;
Besides home use, this 5G CPE is publicly used in office, banks, chain stores, outdoor camping etc.
Hardware Spec: | |
Model | KS-5G-XM520 |
WiFi Standard | IEEE 802.11b/g/n/ac/ax |
CPU | MT7621DAT+MT7905N+MT7975DN |
Flash | 16MB |
Memory | 256MB DDR3 |
Frequency | 2.4G: 2400 - 2484MHz |
5.8G: 5150 - 5850MHz | |
Data Rate | 600Mbps @ 2.4GHz; 1200Mbps @5.8GHz |
RF Power | ≤ 21dBm |
Access Users | 100+ Clients |
Interface | 2* 10/100/1000Mbps LAN (Optional: 1*RJ11 port optional to support VoLTE, 1*10/10/100/1000Mbps LAN port) |
1*10/100/1000Mbps WAN | |
Button | Reset button |
WPS Button | |
SIM | 1*SIM card slot for 5G SIM card |
Switch | LED Switch |
LED Indicator | 4G |
5G | |
WIFI | |
Power | |
ETH | |
Antenna | Build in 5dBi MIMO Antenna |
Power Consumption | <20W |
DC Power Supply | 12V/2A |
MTBF | ≥52,560H |
Working temperature | Working Temperature:-20℃～55℃ |
Storage temperature: -30℃～70℃ | |
Humidity | 5%～95% |
Dimensions | 108mmX108mmX216mm |
4G/5G Speed | |
5G Chipset | Unisoc UDX710 (Asia/Middle East) |
4G/5G Band | 5G: NSA:n41/78/79; SA:n1/28/41/77/78/79 LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28; LTE-FDD: B34/B38/B39/B40/B41; WCDMA:B1/B2/B5/B8 |
4G/5G Speed | NSA: Max. 2.2Gbps(DL)/575Mbps(UL); SA: Max. 2Gbps(DL)/1Gbps(UL); LTE: 600Mbps(DL)/150Mbps(UL); UMTS: 42Mbps(DL)/11Mbps(UL); |
Firmware Features | |
Operation mode | Router/5G |
Multiple Functions | Multiple SSID functions: 2.4GHz: 4; 5.8GHz: 4. |
Support SSID hidden | |
Support seamless roaming, 802.11kvr standard. | |
Support SMS, Phone book, QXDM tool | |
Support MAC filter | |
VoLTE in optional | |
Support client isolation to improve the wireless stability | |
VPN | VPN Passthrough and VPN Client (L2TP PPTP) |
Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3 |
TR069 | Can develop it |
IP Protocol | IPv4/IPv6 |
Device Management | GUI web management |
Support firmware back-up, restore, reset, upgrade | |
Packing List
| KS-5G-XM520*1 Power adapter×1（12V1.5A) Cat 6 LAN Cable×1（1 meter） User Manual×1 |
