KS-5G-XM520P is an high speed 11ax Wi-Fi6 standard 5G CPE support PoE output.
It is 2.4G+5.8G dual band, 5.8G prior, 1800Mbps wireless data rate; Allow 50+ users to access into high speed wireless network;
Equipped with 4G/5G Unisoc chipset, maximum 2.2Gbps in 5G speed, easy to be 400Mbps+ real throughput, satisfied with growing-up high speed mobile connections requirements;
Besides that, it support guest network, parental control, IPv4 & IPv6 IP pool, plug and play, simple to access and manage.

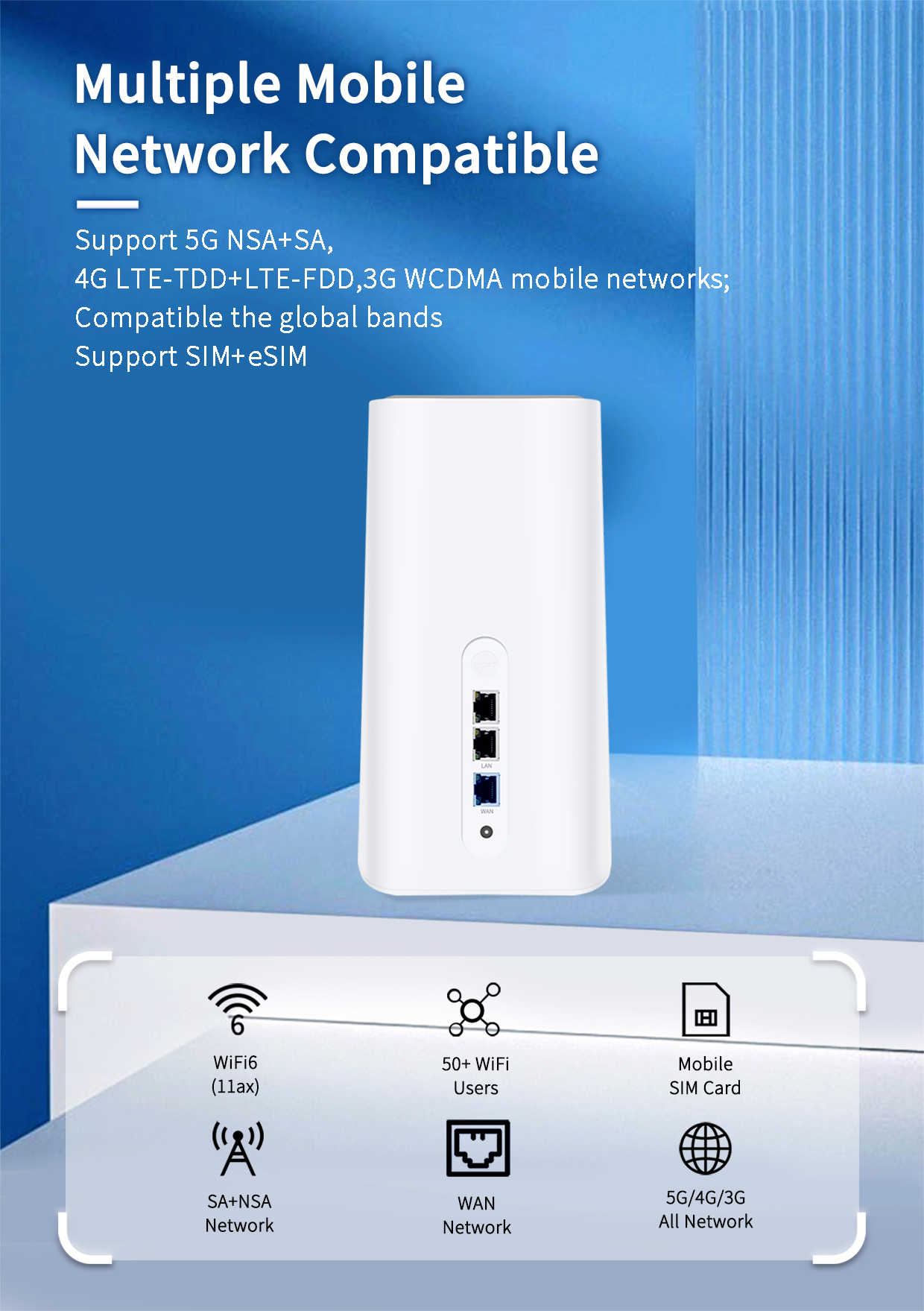

Multiple Mobile Network Compatible
Support 5G NSA+SA, 4G LTE-TDD+LTE-FDD, 3G WCDMA mobile networks;
Compatible global bands, support all SIM cards

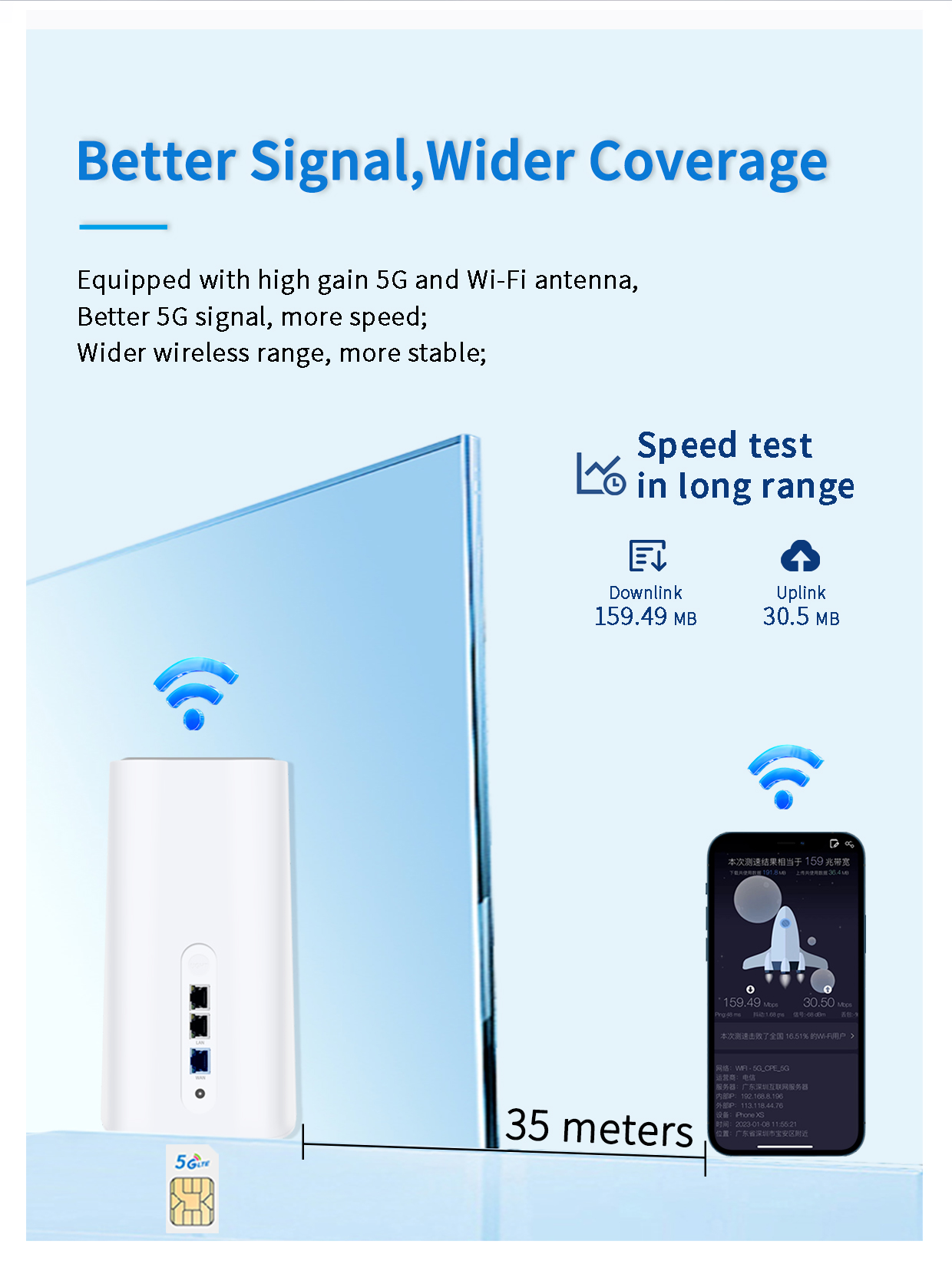

Dual band wireless signal for more users

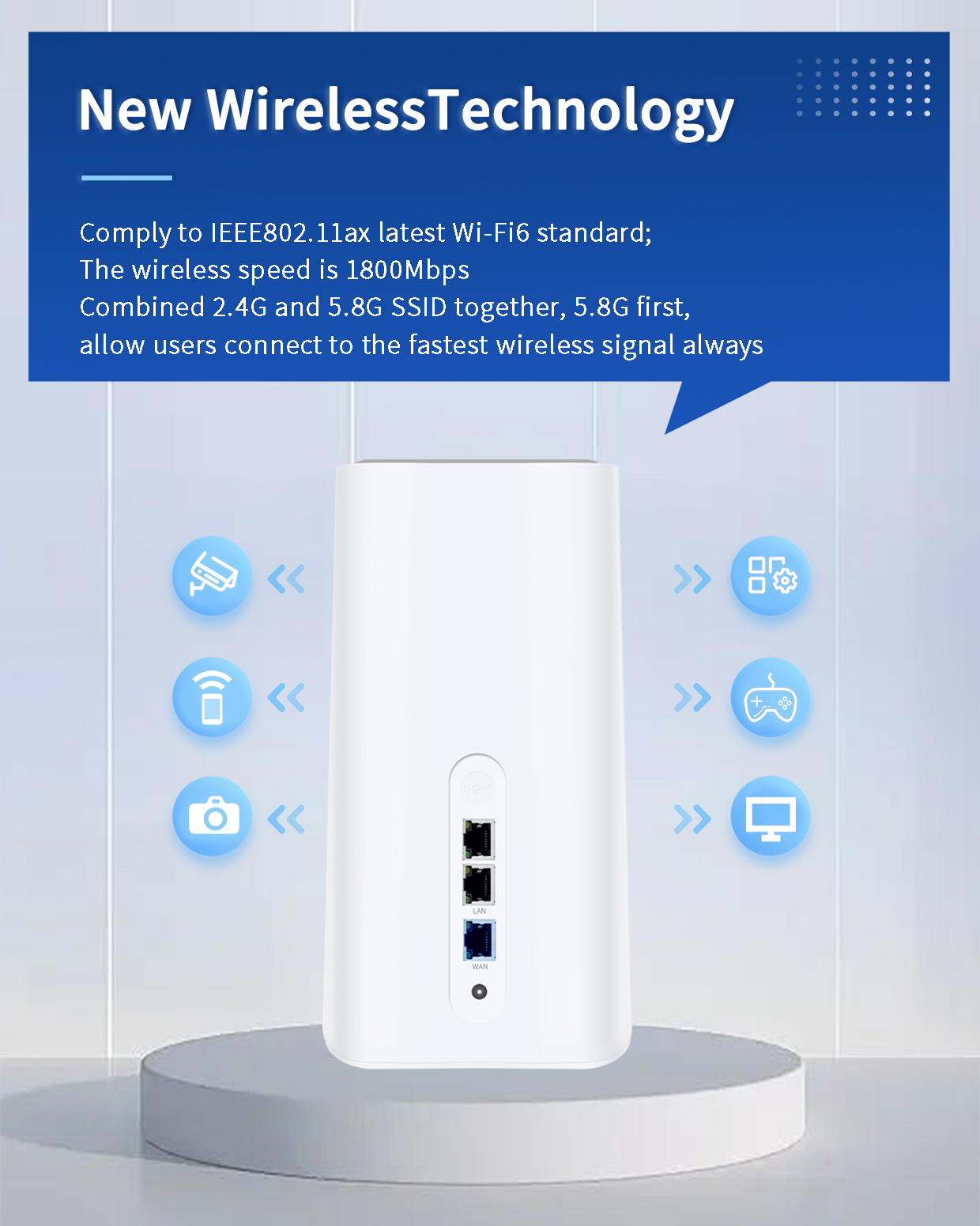

Comply the latest WiFi6 standard, dual band with 1800Mbps high speed. MU-MIMO, DL/UL-OFDMA modulation, 5G prior, allow 50+ users access into this router, and easy to make all users automatically selects the best connection, to keep the running ultra-fast.
High speed 5G Network, plug and play
Compatible with NSA/SA dual-mode, more than 400Mbps real 5G throughput, suits to all network types all over the world, plug and play, let’s enjoy the ultra-fast broadband connection at any places

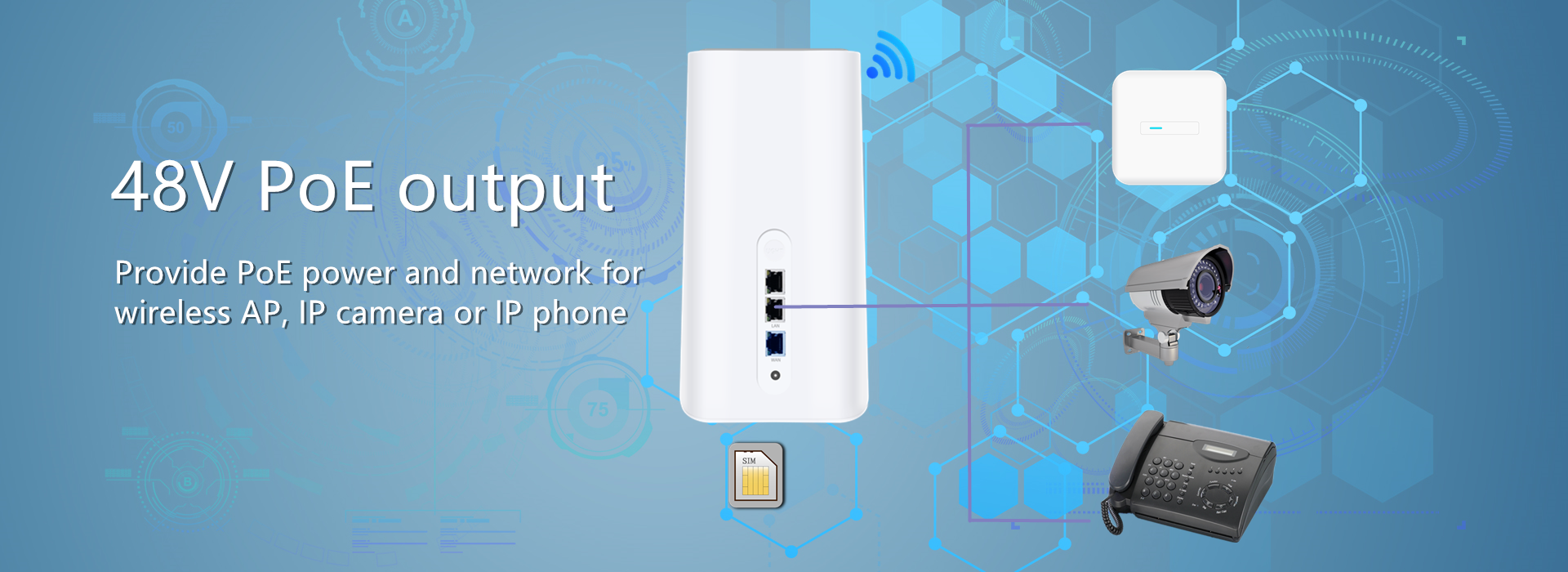

IEEE 802.3af/at PoE output
Equipped with 3*10/100/1000Mbps RJ45 ports, one port can support 48V active PoE output for IP phone, IP camera or wireless AP

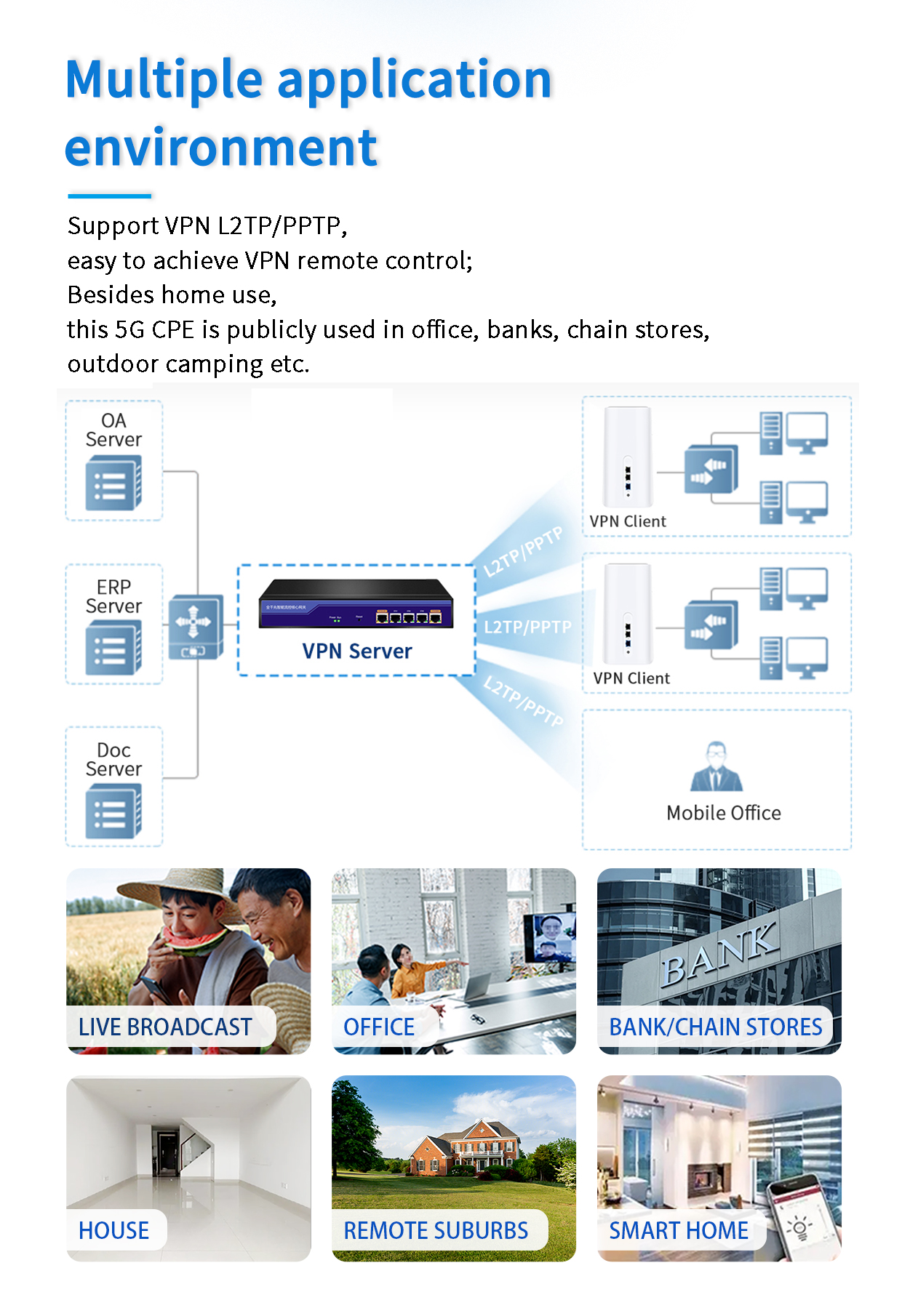

VPN remote control
Support L2TP and PPTP VPN client, it allow the communication between VPN server.
Hardware Spec: | |
Model | KS-5G-XM520P |
WiFi Standard | IEEE 802.11b/g/n/ac/ax |
CPU | MT7621AT+MT7905N+MT7975DN |
Flash | 16MB |
Memory | 256MB DDR3 |
Frequency | 2.4G: 2400 - 2484MHz |
5.8G: 5150 - 5850MHz | |
Data Rate | 600Mbps @ 2.4GHz; 1200Mbps @5.8GHz |
RF Power | ≤ 21dBm |
Access Users | 100+ Clients |
Interface | 2* 10/100/1000Mbps LAN, one LAN port support IEEE 802.3af/at PoE output |
1*10/100/1000Mbps WAN | |
Button | Reset button |
WPS Button | |
SIM | 1*SIM card slot for 5G SIM card |
Switch | LED Switch |
LED Indicator | 4G |
5G | |
WIFI | |
Power | |
ETH | |
Antenna | Build in 5dBi MIMO Antenna |
Power Consumption | <20W |
DC Power Supply | 48V/1A |
Working temperature | Working Temperature:-20℃～55℃ |
Storage temperature: -30℃～70℃ | |
Humidity | 5%～95% |
Dimensions | 108mmX108mmX216mm |
4G/5G Speed | |
5G Chipset | Unisoc UDX710 |
4G/5G Band(Asia) | 5G: NSA:n41/78/79; SA:n1/28/41/77/78/79 LTE-FDD: B1/B2/B3/B5/B7/B8/B20/B28; LTE-FDD: B34/B38/B39/B40/B41; WCDMA:B1/B2/B5/B8 |
4G/5G Band(Middle East/Europe/South America) | 5G: NSA:n1/3/7/28/38/40/41/77/78; SA:n1/3/5/7/8/20/28/38/40/41/66/77/78 LTE-FDD: B1/B2/B3/b4/B5/B7/B8/B20/B28/b66; LTE-FDD: B38/B40/B41; WCDMA:B1/B2/B5/B8 |
4G/5G Speed | NSA: Max. 2.2Gbps(DL)/575Mbps(UL); SA: Max. 2Gbps(DL)/1Gbps(UL); LTE: 600Mbps(DL)/150Mbps(UL); UMTS: 42Mbps(DL)/11Mbps(UL); |
Firmware Features | |
Operation mode | Router/5G |
Multiple Functions | 2.4G SSID and 5.8G SSID combined together, support 5.8G first always |
Support SSID hidden | |
Support SMS, Phone book, QXDM tool | |
Support DDNS | |
Support Guest Network and Parental Control | |
VPN | VPN Client (L2TP PPTP) |
Security | Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, WPA3 |
TR069 | Can develop it |
IP Protocol | IPv4/IPv6 |
Device Management | GUI web management |
Support firmware back-up, restore, reset, upgrade | |
Packing List
| KS-5G-XM520P*1 Power adapter×1（48V1A) Cat 6 LAN Cable×1（1 meter） User Manual×1 |
