VPN router and AP controller (Model:KS-AC100)

This is an VPN router, SMB gateway and AP controller;As an SMB gateway, it allow 100+ users to access, support multiple WAN;As an AP controller, it can manage the wireless AP centrally;As an VPN router, it support PPTP, L2TP, OpenVPN and IPsec;What's more, it support cloud remote management and SD-LAN also;
橙色魔方video playback
Overview Main Features Specifications

AC-100 is an small size Enterprise Gateway and VPN router with Mediatek chipset; Metal housing, desktop design with 5*10/100/1000Mbps RJ45 ports, it can be installed at home, office, restaurant to provide the Gigabit Ethernet for users.



1. Industrial gateway

1.1 KS-AC100 support PPPoE/DHCP/Static IP access, work with different ISP Ethernet access.

1.2 Support multiple Gigabit WAN ports, support load balancing, Ethernet backup, Network overlay, provide users with a more stable and faster network.

1.3 KS-AC100 support policy routing based on IP address, MAC address, network interface, domain name and other rules.

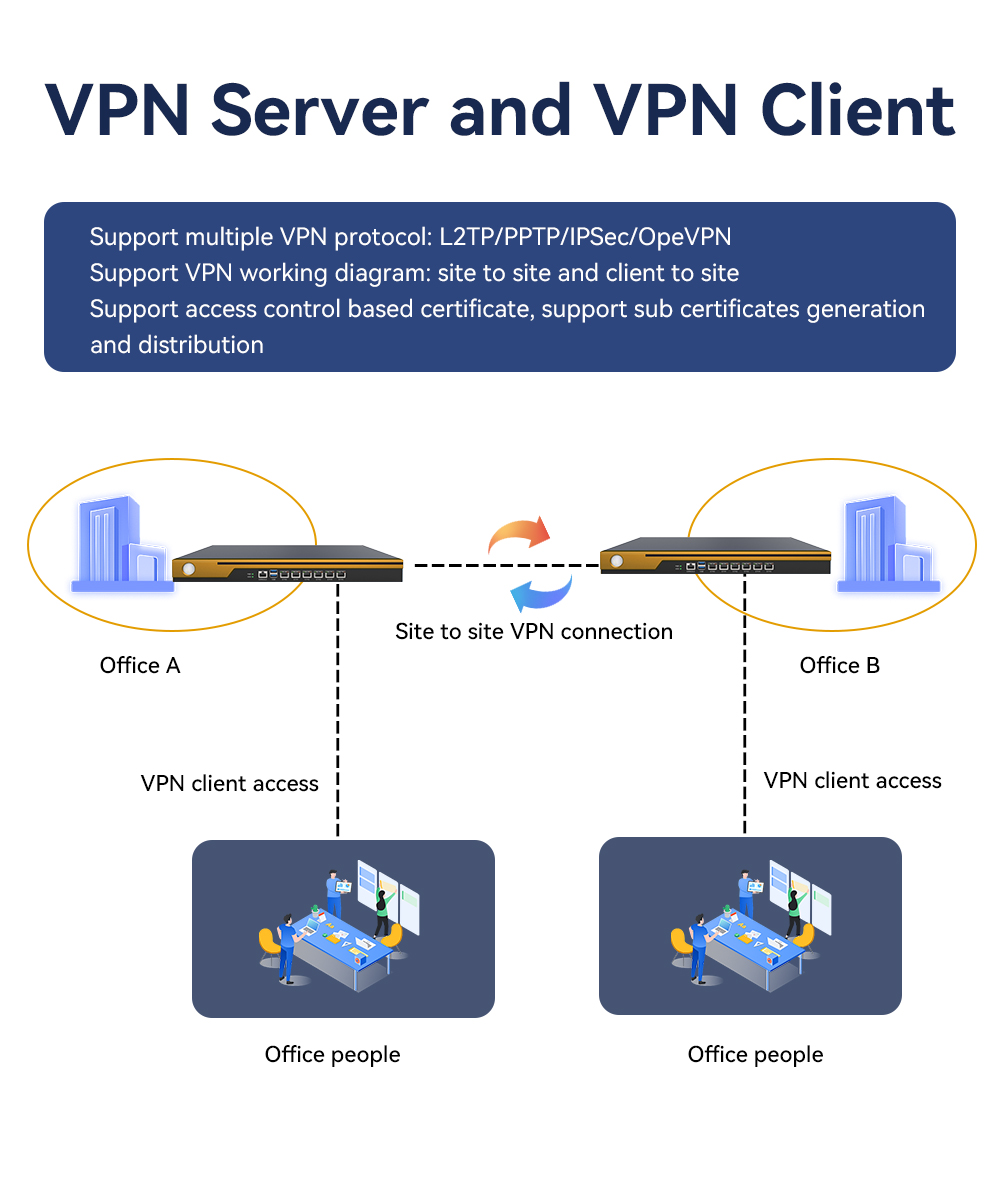

2.  VPN client and VPN server support

KS-AC100 support multiple VPN protocol: L2TP/PPTP/IPSec/OpeVPN

Support VPN working diagram: site to site and client to site

Support access control based certificate, support sub certificates generation and distribution

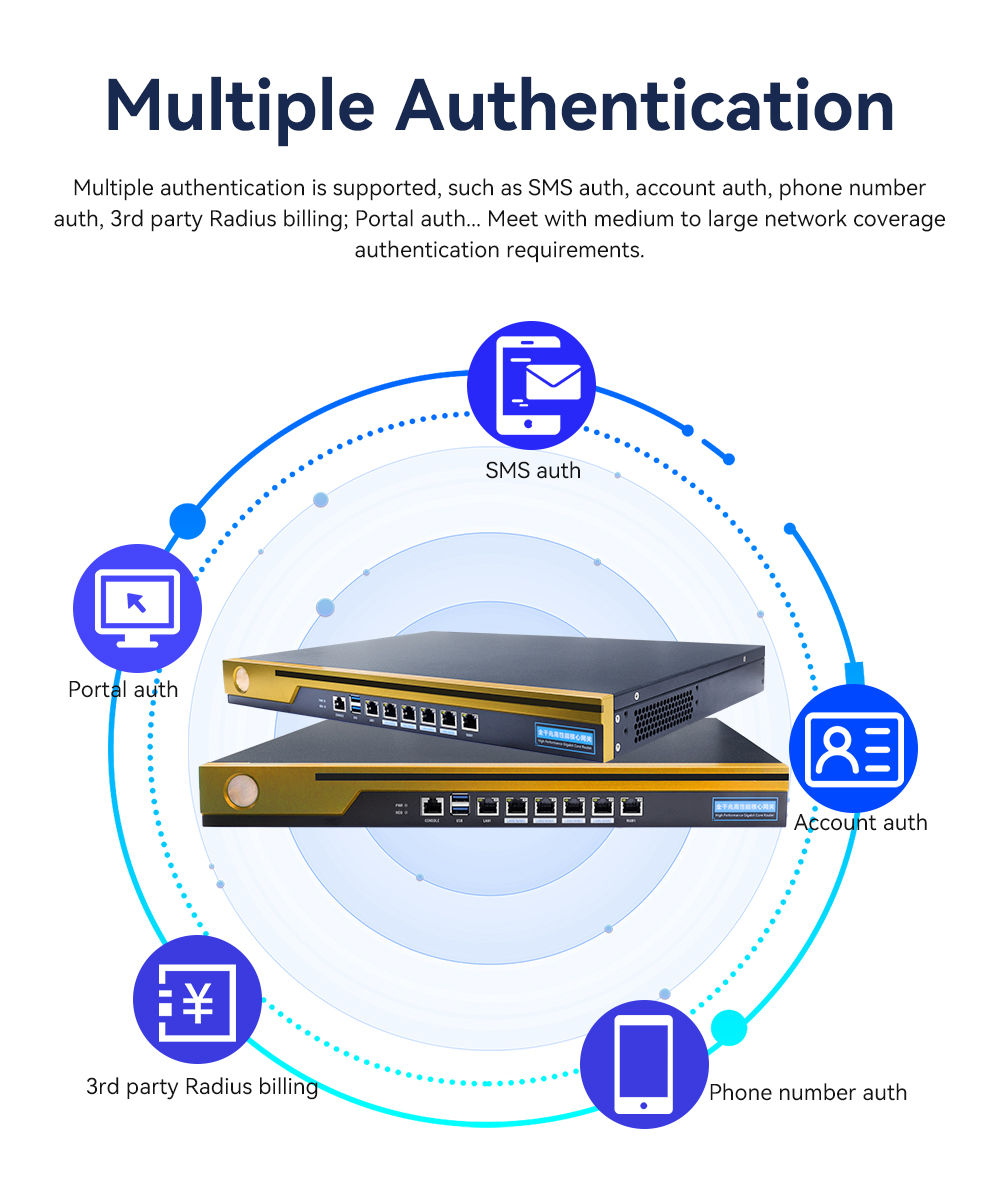

3.Multiple authentication

KS-AC100 support multiple authentication, such as SMS auth, account auth, phone number auth, 3rd party Radius billing; Portal auth... Meet with medium to large network coverage authentication, advertisement, promotion or notification requirements.


 multiple authentication.jpg





4. Cloud management and SD-LAN support

4.1 KS-AC100 support cloud access for remote management and SD-LAN function; Very easy to manage this controller and connected wireless AP;

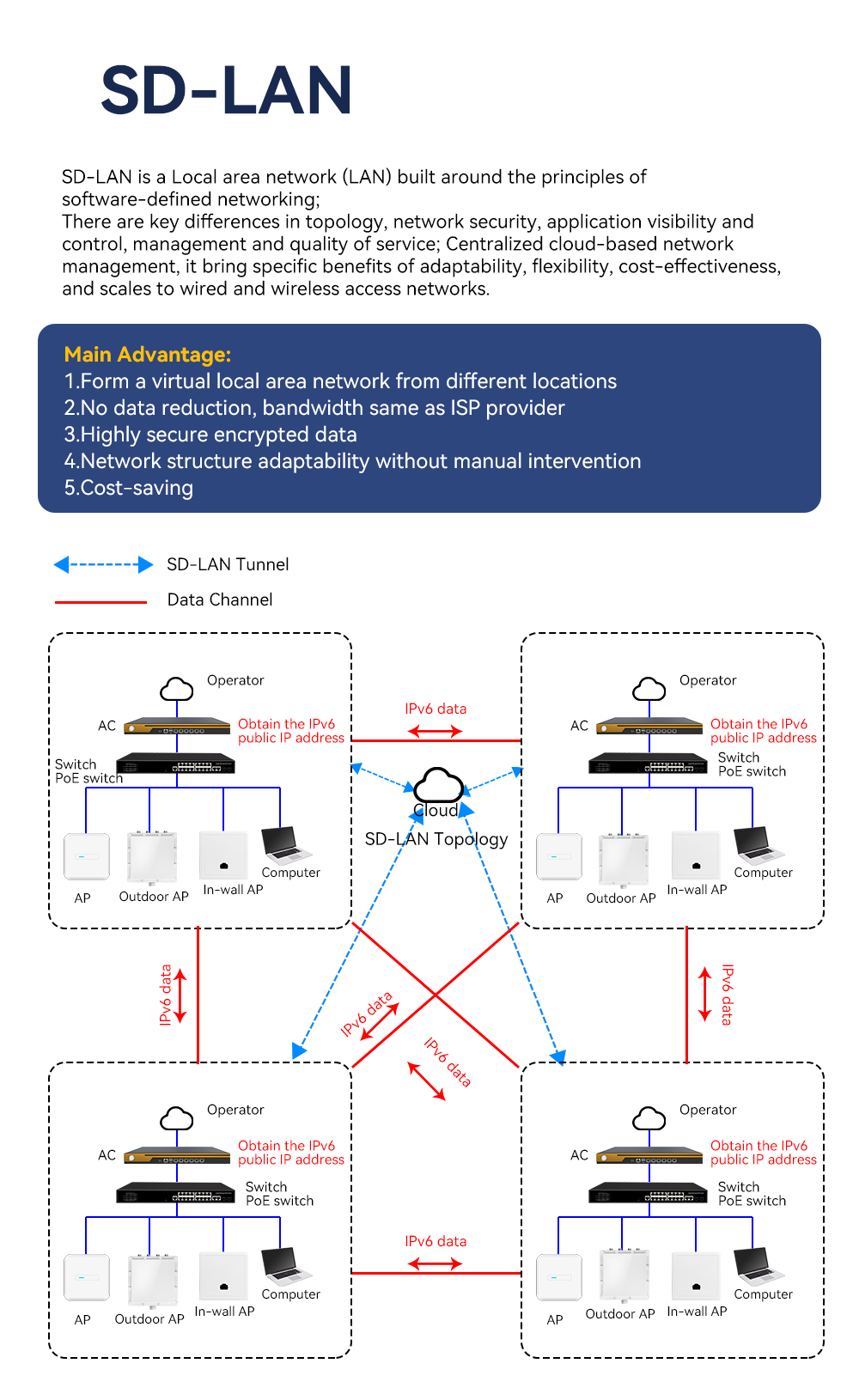

4.2 KS-AC100 support SD-LAN

SD-LAN is a Local area network (LAN) built around the principles of software-defined networking;

There are key differences in topology, network security, application visibility and control, management and quality of service; Centralized cloud-based network management, it bring specific benefits of adaptability, flexibility, cost-effectiveness, and scales to wired and wireless access networks.







5. AP Management function

5.1 Zero configuration and grouping

Add a zero configuration group before access the wireless AP, then the wireless AP will automatically get the corresponding configuration from this group, simple and convenient; Administrator can add different group in the whole network, all wireless AP can obtain the configuration from this groups.



5.2 Intelligent channel analyzer

KS-AC100 is built intelligent channel analyzer, wireless AP can detect and analyze the Wi-Fi channels, greatly help wireless AP to select the channel with least interference and achieve the most stable wireless coverage effect.



5.3 Automatically assign IP address to wireless AP

KS-AC100 has a built-in DHCP server, which automatically assigns IP addresses to wireless AP, avoids the IP address conflicts, saves labor configuration costs.

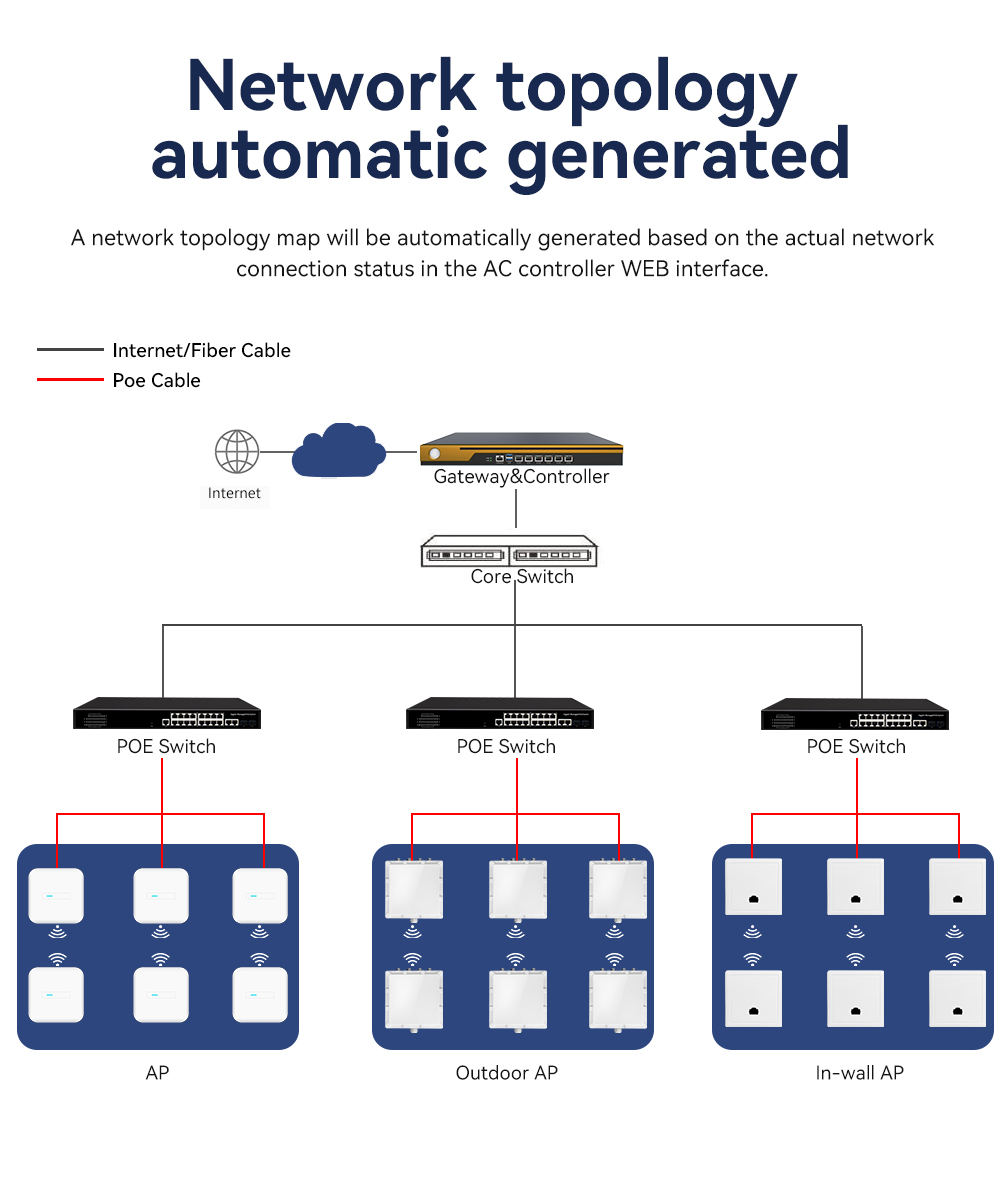

6. Network topology automatic generated

A network topology map will be automatically generated based on the actual network connection status in the AC controller WEB interface.

 Network topology automatic generated.jpg

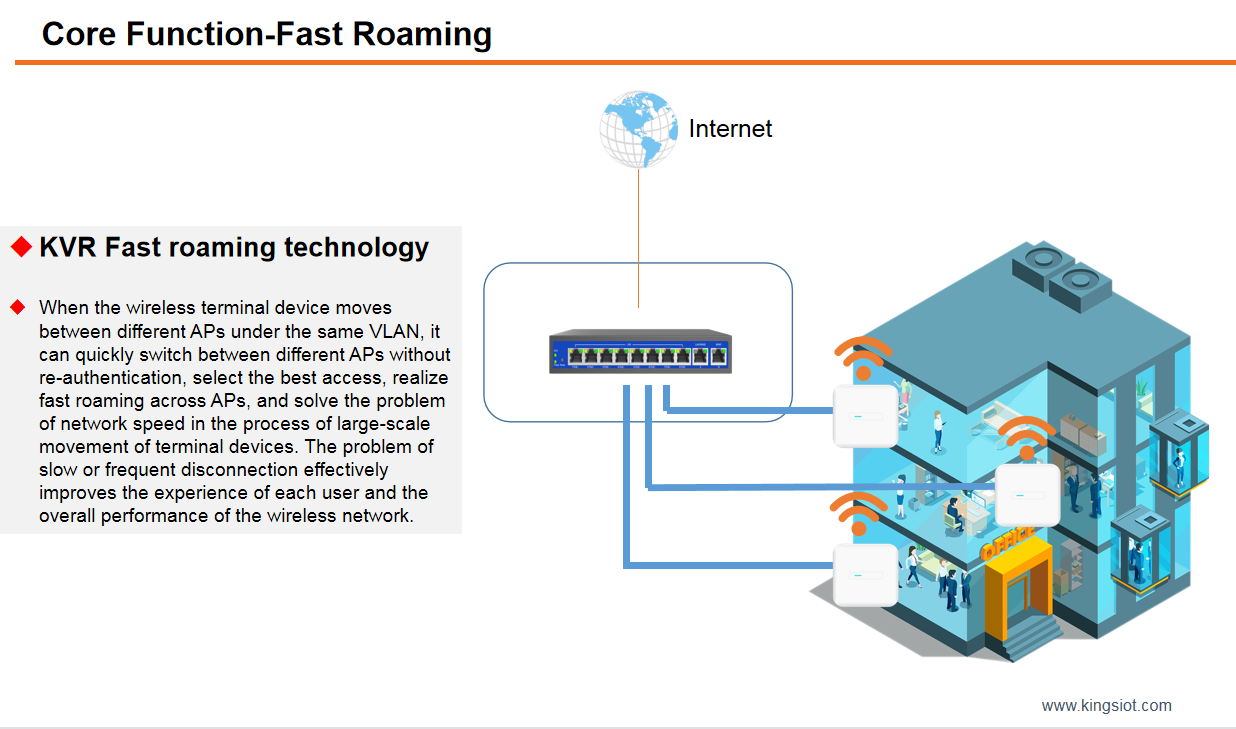

7. VLAN, Seamless roaming, 5.8G Prior other functions

KS-AC100 support real-time network speed monitoring, VLAN, 802.11kvr seamless roaming, static IP, DDNS, 5.8G prior, IPv6

seamless roaming.png


Model

KS-AC100



Protocol

IEEE 802.3, 802.3u, 802.3ab

TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS, IPsec, PPTP, L2TP

CPU

MT7621

DDR3

512MB

Flash

16M

Heat Dissipate

Super silent ball fan



Ports

4 × 10/100/1000Mbps LAN ports (can set to WAN port)

1 × 10/100/1000Mbps WAN port

Power

AC:100-240V,50HZ

Dimension

293 *180 *44mm

Working Temperature

-20~55

Storage Temperature

-40~ 70

Working Humidity

5% ~ 97%RH (No condensation)

Firmware features



AP Management

Max to access and manage 100 users

Max to manage 128PCS wireless AP

Centrally and remotely to manage/configure wireless AP

Users status checking



Smart Flow Control

No-configuration intelligent flow control

Powerful multi-line diversion

Application Priority Automatically







Load Balance

Multiple WAN, multiple ISP network access

Intelligence load balance

Ethernet line backup

Ethernet overlay

Policy routing: based on IP address, destination IP address, source MAC address, network port, domain, destination port, Extranet port, Identity binding

Protocol binding

Online detection

Routing

Static Routing



Behavior Management

All-round to block P2P firmware

P2P flow control and bandwidth allot

File and URL filter

Monitor network behavior at all times

VPN

L2TP, PPTP, OpenVPN, IPSec



Bandwidth limitation

IP-based bandwidth limitation

Safeguard / Restrict bandwidth

Time strategy

IP based session restriction





Security Center

MAC address filter

UPR/key words filter

Web content filter

IP address filter

Port mapping

DMZ



Defense Center

TCP/UDP/ICMP flood defense

Block TCP scanning

Block ping WAN port



ARP Detection

Send GARP packets

ARP Scanning on WAN/LAN port

Online detection

IP-MAC binding

Authentication

Portal auth; 3rd Radius billing auth; Account auth, SMS auth; No auth...

Management

Web/CLI/Telnet management

Remote management

Others

DDNS, VPN management





Content

KS-AC100 *1

Power Cord *1

Installation Accessory

QIG*1
