Wi-Fi 6 Industrial IoT Wireless AP (Model: KS-BL5000)

KS-BL5000 is a high-power, high-speed, high-performance Wi-Fi 6 standard industrial PCBA; Qualcomm IPQ5018 enterprise chip, the working temperature is -40~70 degree;This industrial wireless board comply to Wi-Fi 6 standard, 2.4G+5.8Gdual band, 3000mbps wireless high-speed;This is an IoT WiFi module with SR485 interface, easy to integrated into other system which required wireless transmission.

video playback

Overview Main Features Specifications

KS-BL5000 is a high-power, high-speed, high-performance Wi-Fi6 standard PCBA; Qualcomm IPQ5018 enterprise chip, 2.4G+5.8G dual band, 3000Mbps wireless high-speed, 160MHz bandwidth, support IEEE 802.1kvr seamless roaming, allow users to access into the high speed wireless signal always; With wide voltage power supply, RS485 and SP3232 terminal access, serial port access, high and low temperature up to -40~70 degrees, is widely used in UAV Communication control, industrial automation, oilfield data acquisition, hydrological monitoring system, vehicle monitoring, wireless meter reading, smart home, Safety and fire protection system, wireless SP3232 data communication, and other transmission fields.

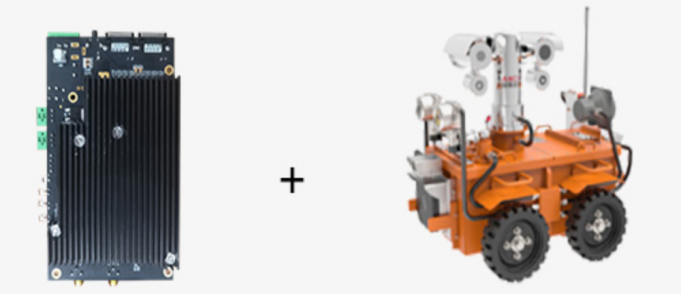

This product can be shipped in finished product for industrial applications or PCBA for system integration, such as water meters, oil fields, vehicles, etc., to provide high speed wireless network access or data transmission through wireless.

Qualcomm enterprise chips, all kinds of ICs are world-class brands, with high stability and MTBF ≥ 850000H;
External power amplifier, high power with detachable antenna, stronger wireless signal with wider coverage;
3000Mbps high speed, RS485, RS232 multiple ports, wide-range voltage, widely be used in different area;
Support 802.11kvr seamless roaming, users automatically switch to high stability signal but no Wi-Fi dropping;
Support Easy Mesh, easy to expand the wireless network, achieve better wireless coverage
Support WPA3 and 802.1x advance encryption, guard wireless network security all the time;
Strong hardware and firmware technical support for PCBA integrated.
Passed Mine security standard already.

Hardware Spec:
Model	KS-BL5000
WiFi Standard	IEEE 802.11b/g/n/ac/ax
CPU	IPQ5018 + QCN6102 +QCA8337
Flash	8MB_SPI_NOR Flash+128MB_SPI_LNAND Flash
Memory	256MB
Frequency	2.4G: 2400 - 2484MHz
Frequency	5.8G: 5150 - 5850MHz -6900MHZ
Data Rate	600Mbps @ 2.4GHz; 2400Mbps @5.8GHz
RF Power	2PCS antenna: 2.4G≥22 dBm/chain; 5.8G≥21dBm/chain
Access Users	100+ Clients
Ethernet	1*10/100/1000Mbps WAN，RJ-45;
Ethernet	1 * 10/100/1000Mbps LAN,RJ-45
Communication terminal	1 * RS485; 1 * SP3232;
Button	Reset button
LED Indicator	PWR LED
	SYS LED
	2.4G LED
	5.8G LED
Antenna	SMA Connector
Power Consumption	<14W
Power Supply	Input 9~24V, Phoenix Contact
MTBF	≥850000H@25℃
Working temperature	Working Temperature:-20℃～55℃
Working temperature	Storage temperature: -40℃～70℃
Humidity	5%～95%
Dimensions
Firmware Features
Operation mode	AP or Mesh
Wireless Functions	Multiple SSID functions: 2.4GHz: 8; 5.8GHz: 8.
	Support SSID hidden
	Support seamless roaming, 802.11kvr standard.
	Support 5G Prior for a faster Ethernet.
	Support MAC filter
	Support parental control to limited the online time and Children behavior.
	Support client isolation to improve the wireless stability
VPN	VPN Passthrough and VPN Client (L2TP PPTP)
Security	Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP, 802.1x, WPA3
IP Protocol	IPv4/IPv6
Device Management	GUI web management
Device Management	Support firmware back-up, restore, reset, upgrade
Packing List	KS-BL5000 PCBA
