Product Features:

Full Gigabit network port, higher speed

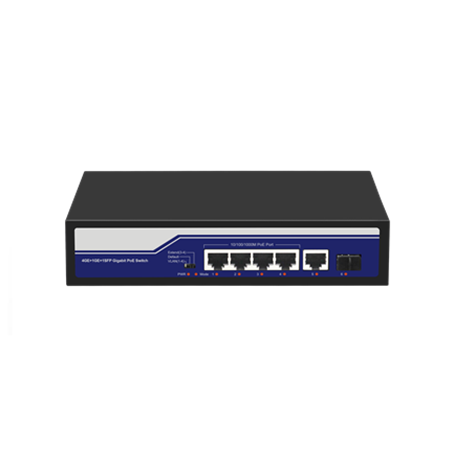

4*10/100/1000Mbps PoE ports, 1*10/100/1000Mbps RJ45 uplink port, 1*10/100/1000Mbps SFP port;

All ports support IEEE 802.3x full-duplex flow control and Backpresure half-duplex flow control;

Supports automatic port rollover（Auto MDI/MDIX）, 10/100/1000M self-adaptive, and line speed switching.

PoE Power Supply

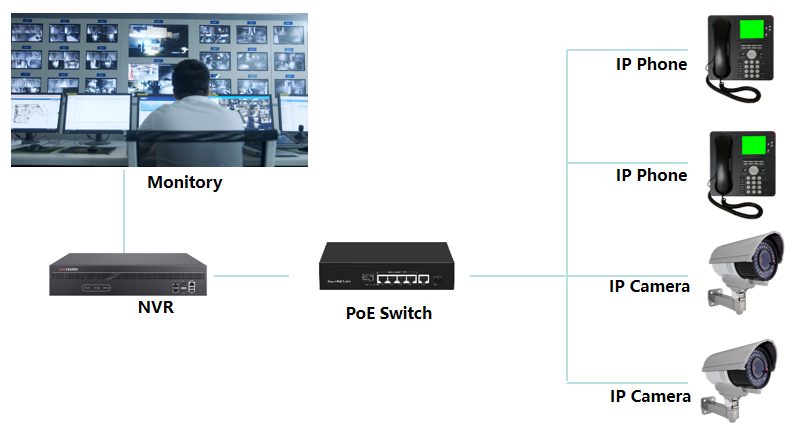

4*10/100/1000Mbps RJ45 ports support PoE+, meeting the PoE power supply needs of security, teleconferencing systems, wireless network coverage and other scenarios.

Comply with IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 65W, the maximum PoE output power of PoE port is 30W;

Automatically identify PoE devices for power supply without damaging non-PoE devices

Stable and reliable

With the latest high-speed Ethernet chip, self-identifying and intelligent management, ultra-high backplane bandwidth design with extremely fast data processing capabilities, improved the data transmission performance;

Seiko metal housing with electrostatic paint, double-flow heat dissipation, strong and durable

Simple to Operate

Simply to operate, plug and play, intelligent management, lossless transmission and zero lag in security monitoring. The PoE power is no restricted by power lines and power socket, saving the labor and wiring costs.

Users can easily understand the working status of device through the power indicator light and network port status light.

One-Key VLAN Isolation and 250 Meters PoE power

VLAN: When the control key is adjusted to this position, it means that 1~4 PoE ports are isolated from each other, can communicate with the uplink ports only.

Default: all ports communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000M self-adaptive.

Extend: In the link extension mode, the 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, and the transmission rate turns to 10 M.
