WiFi Coverage for School

High Security+High Density Application

Features of Smart Wireless Coverage in Campus

Full wireless coverage

• No dead angle, realize full wireless coverage;

• RF optimization and automatic channel selection, ensure the best signal

• Supports seamless roaming at L2/L3 layers, load balancing between APs, and balanced user access

Unified management in hybrid network and wireless AP

• In wall AP for dormitory room, provide full and stable signal for each room；

• Outdoor AP is applicable to play ground, ball park, waterproof, moisture-proof, dust-proof, fire-proof and sun protection；

• Dual band for class room for more end users

Portal authentication and unified billing

• Connect with education network to realize integrated operation;

• Associate with the LDAP database of the school and unify the identity and authority;

• It can be seperately billing or jointly with school management.

• SMS, OTP,  mobile multiple authentication methods

Anti agent mechanism, behavior audit, user isolation

• Online behavior management, providing a green network;

• The behavior audit function seamlessly connects with local network supervision departments;

• Anti agency behavior detection, agency behavior punishment mechanism;

• Support user isolation, VLAN division, domain authentication.

Request in campus wireless coverage

The Classroom

There are a large number of online users in the wireless network for each classroom, multimedia classrooms, electronic classroms, require stable real-time transmission of network data and high equipment performance. For teachers and students, it is also necessary to carry out role-based management of online permissions

Campus and Playground

The campus, playgroud and other areas are relatively open and large in area, therefore, the wireless AP is required to be strong enough for full wireless coverage, then the outdoor uncertain weather is also a factory to be considered

Gymnasiums and Stadiums

The gymnasiums and stadiums are large and open area, it is crowed and high dense terminal when there are activities.

Office and Laboratory

 Office buildings always ask for high security wireless network, besides that, different management system should be allowed to access different Etherent and documents

Dormitory

Dormitory users always ask for high speed wireless Ethernet as video player. Then the wireless signal will be effected if the wireless AP is depolyed in the corridor due to the shielding of dormitory wall.

E-MAN

In order to facilitate the unified management of each region, the Education Bureau will ask for a local area network to manage the maintain the subordinate schools. On the other hand, it require for high security to avoid hacker attacks.

Function Request in campus wireless coverage

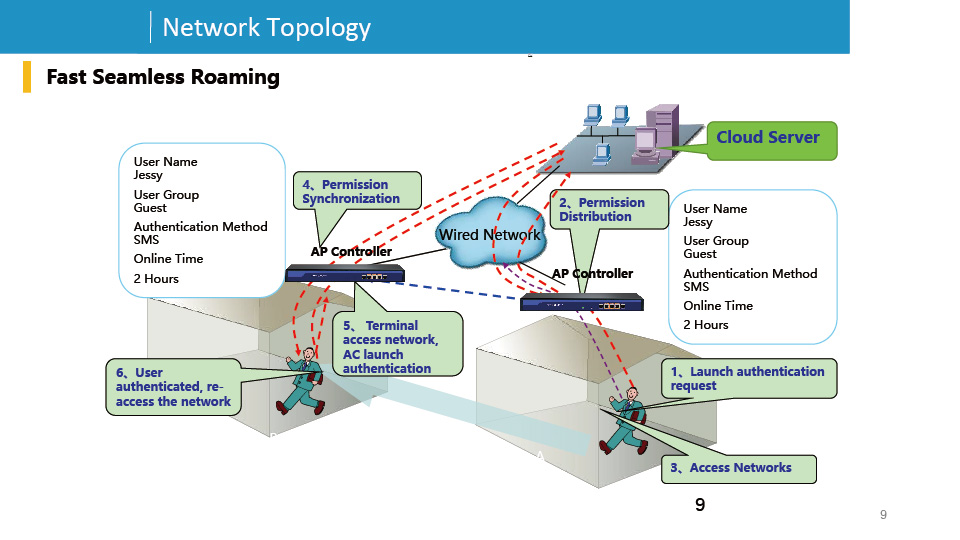

Seamless Wireless Coverage

- Wireless signal no dead angle, realizing full wireless coverage；

- RF optimization, automatic channel selection；

- Support L2/L3 layer seamless roaming and load balancing between APs

- Users balanced

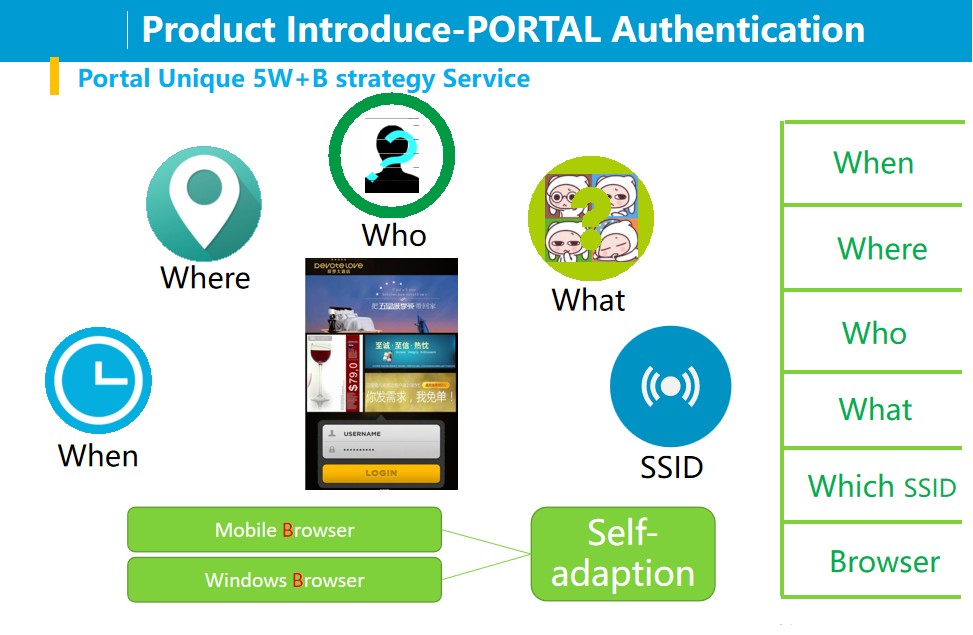

Portal Authentication

- Realize campus wireless office through wireless coverage

- Connect with Campus all-in-one card to realize integrated operation

- Associate school LDAP database.

Internet Billing

- Wireless authentication for students’Internet access;

- Billing to students according to the Internet access time;

- Linkage billing with the school’s all-in-one card system.

Behavior Control Service

- Restrict students to access Internet, avoid illegal access；

- Prevent users from connecting privately, slow down the wireless network

- Punish users for private connection.

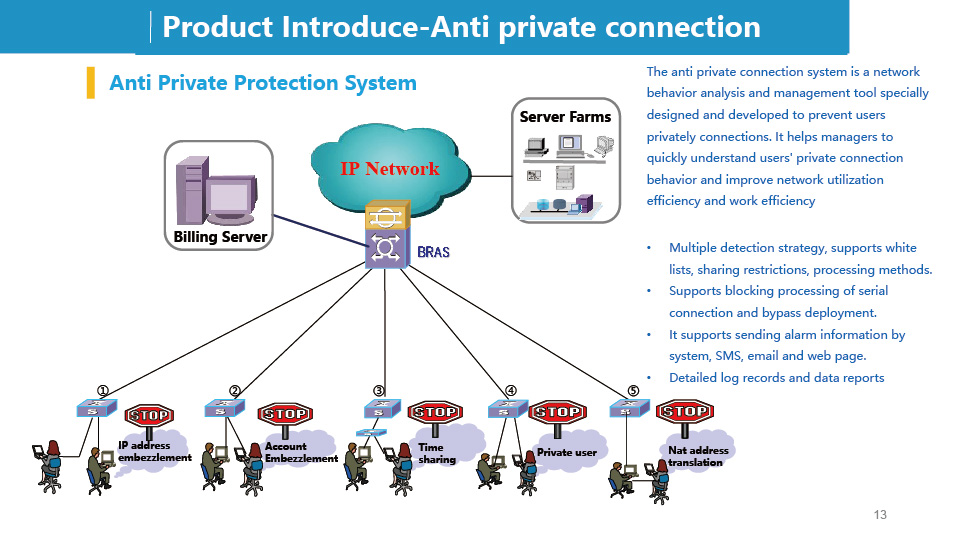

The anti private connection system is a network behavior analysis and management tool specially designed and developed to prevent users privately connections. It helps managers to quickly understand users' private connection behavior and improve network utilization efficiency and work efficiency

• Multiple detection strategy, supports white lists, sharing restrictions, processing methods.

• Supports blocking processing of serial connection and bypass deployment.

• It supports sending alarm information by system, SMS, email and web page.

• Detailed log records and data reports

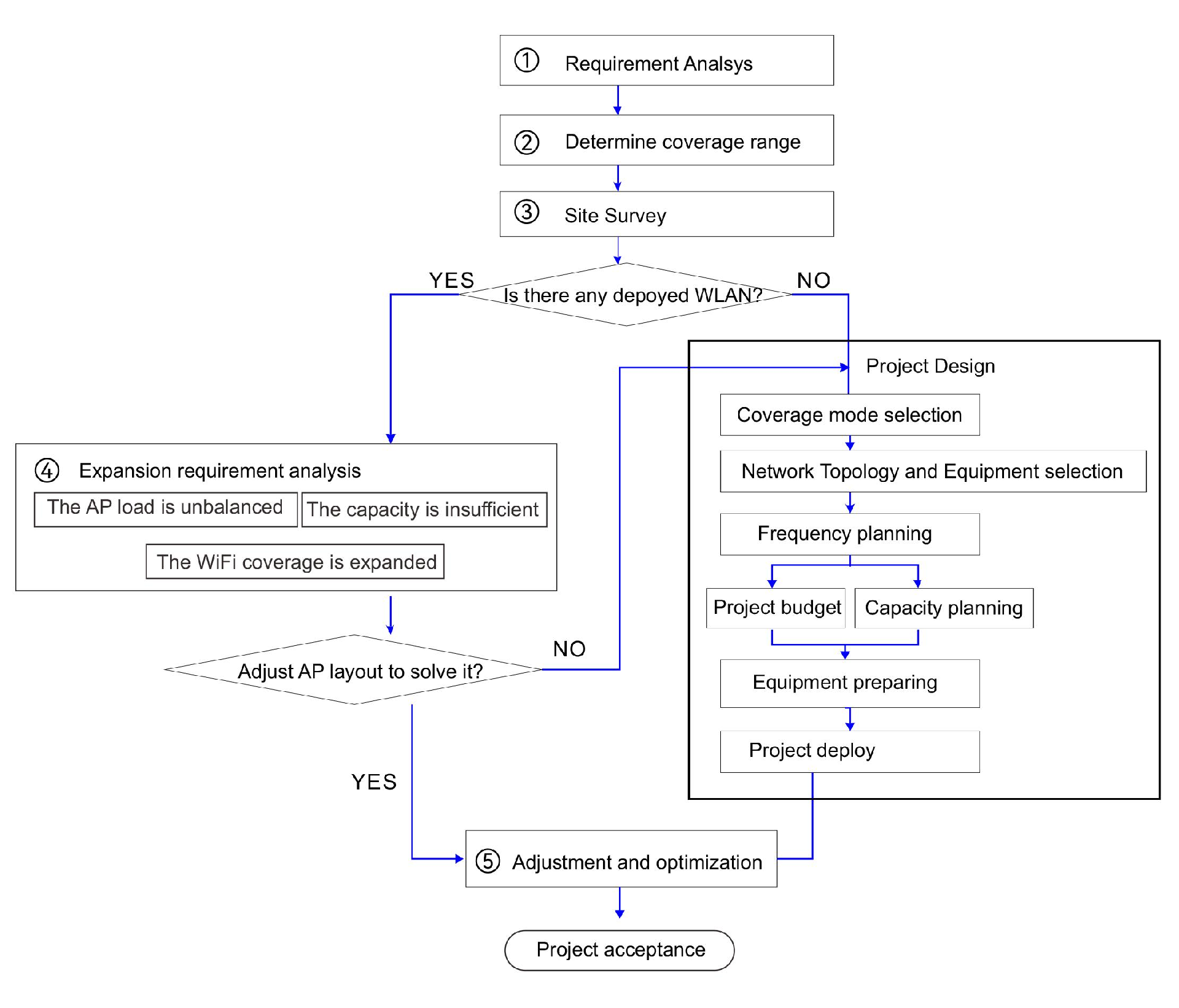

Deployment and implementation

  1. Requirement Analsys

Through the analysis of the current situation and development potential, determine customer’s deploy goals, business volume and regional distribution.

  2. Determine coverage range.

Determine the key coverage areas and wireless AP quantity according to demand analysis.

  3. Site Survey

Collect wireless AP basic information, determine the coverage area of the wireless AP.

  4. Expansion requirement analysis

Collect the usage status of established wireless AP,  determine the capacity expansion requirements.

  5. Project Design

Define the network solution and products will be used according to wifi coverage, frequency, access capacity.

  6. Adjustment and optimization

 According to the monitoring of actual network quality, optimize AP and antenna deployment to improve network quality and performance
