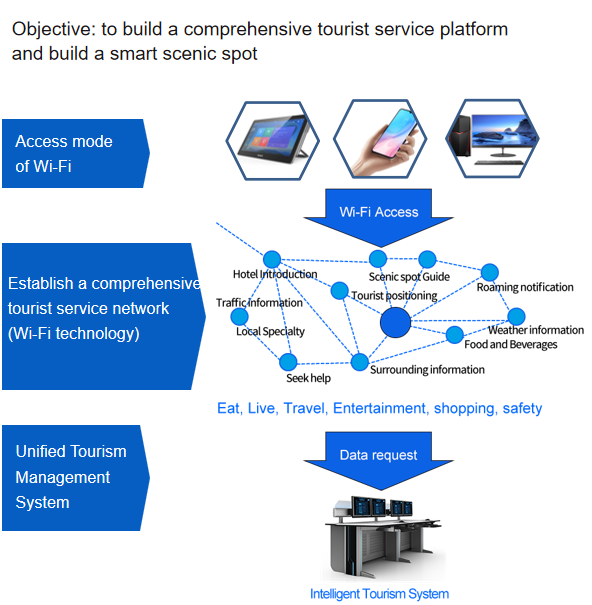

Project objectives of scenic spots

Scenic spot Guide

• On site inquiry: Tourists inquire

• Path navigation: display the interesting locations, and guide tourists to go

Advertising Push

Push the promotion, discount to tourists

Nearby Query

Provide nearby information of the accommodation, catering, transpotation, weather, entertainment, ect.

One click Help

Tourists take the initiative to ask for help, the staff will find people according to their locations, then ask for help and implement assistance quickly

Tourist positioning

Tourists can open the client software and view their real-time location in the scenic spot

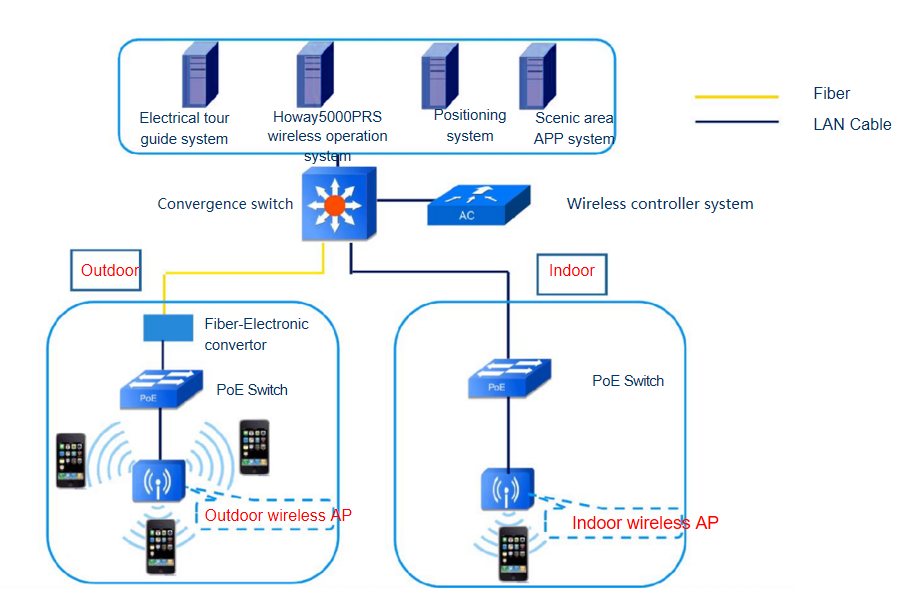

Networking scheme

Wireless coverage device	Wireless AP
	AP Controller（AC）
	POE Switch POE Adapter
Authentication System	Authentication system
	Portal advertisement push system
	User data collection and analysis system
	Provide interfaces to connect with third-party systems

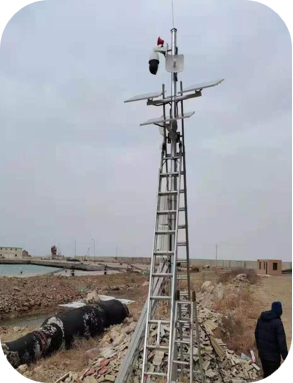

Construction Standard

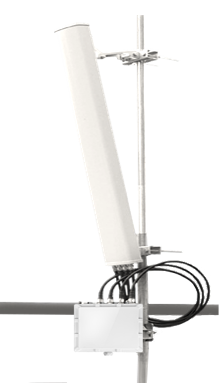

• The base station and antenna are fixed on the tower or roof by holding poles

• The antenna horizontal can be freely adjusted 360 ° according to the target location

• The antenna can adjust the dip angle to provide better coverage

• The antenna can also be tilted up if cover high-rise buildings

• Standard installation accessories

• Key indicators meet the acceptance criteria

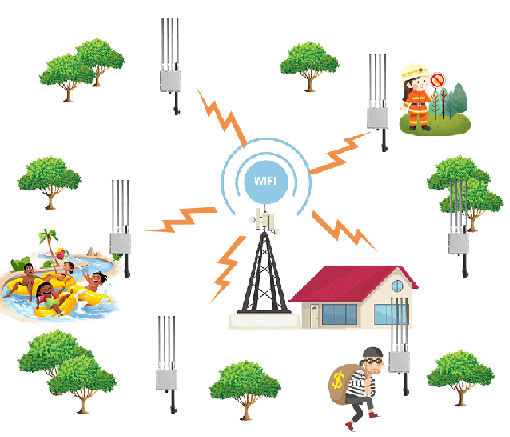

Outdoor coverage scene-1

Wireless signal radiate from the center to all sides

• Adopt multiple panel antenna to complete the 360 degree wireless coverage

• The base station is deployed on tower 20-50 meters above the ground

• In the open areas, the propagation decline of radio waves is relatively small

For outdoor open scenes, one of the requirements for the base station is to have a wide coverage and greater coverage

The scope can reduce the installation quantity of base station equipment, thus reducing the network construction cost

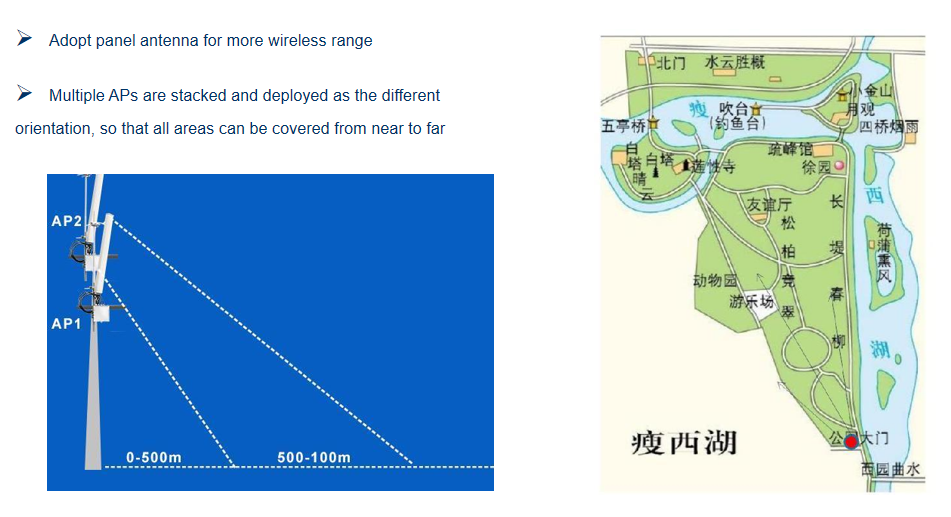

Outdoor coverage scene-2

Adopt panel antenna for more wireless range

Multiple APs are stacked and deployed as the different orientation, so that all areas can be covered from near to far

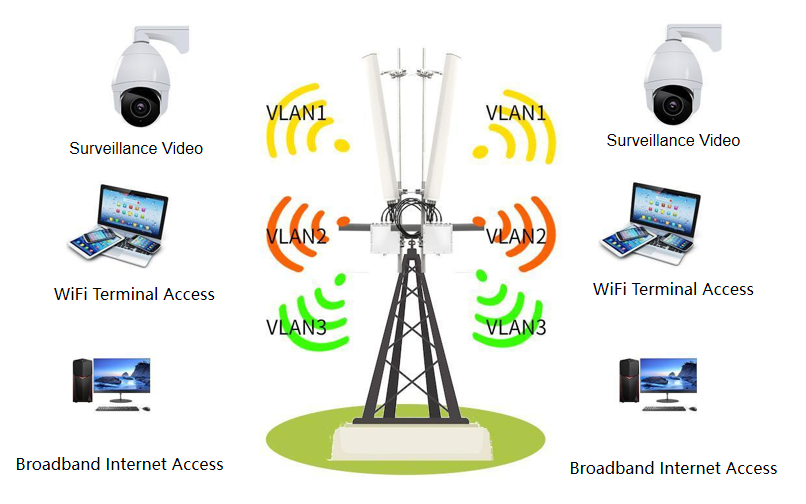

One network with multiple functions

Use the Same Device to Carry Multiple Services

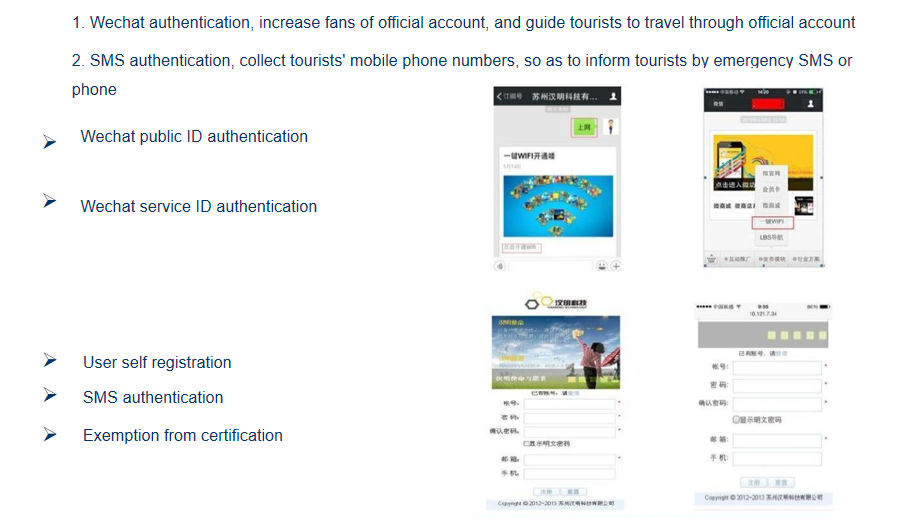

Convenient WiFi authentication

1. Wechat authentication, increase fans of official account, and guide tourists to travel through official account

2. SMS authentication, collect tourists' mobile phone numbers, so as to inform tourists by emergency SMS or phone

Advertising promotion

• Promote brand image by pushing customized portal pages to users who access into network

• Customize the pushing page for different customers including computers, tablets and mobile phones.

Portal authentication + advertisement page

• Portal customization page, display service

• Different SSID push different pages

• Push different pages in different areas

Wechat authentication+ advertisement page

Jump to advertisement push page after wechat authentication

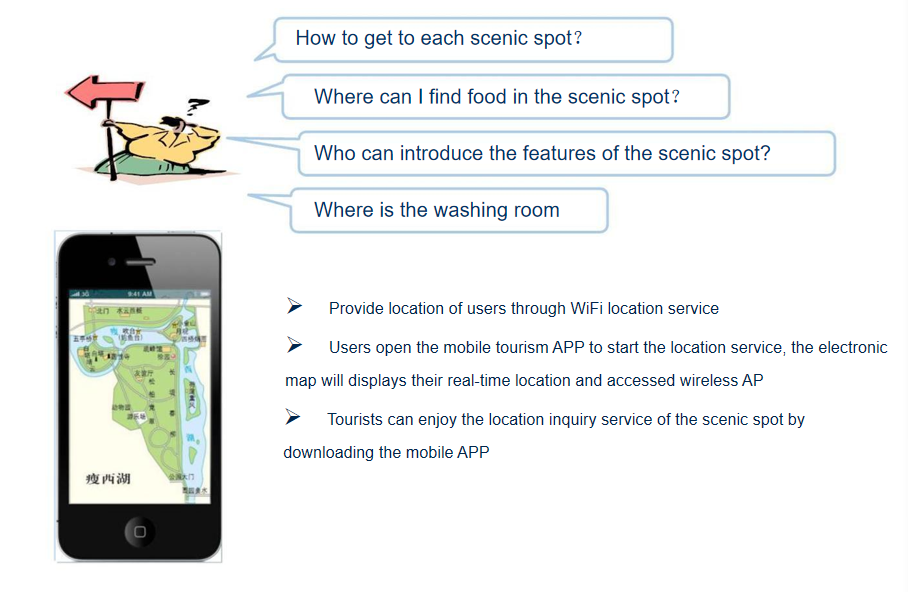

Tourist Positioning

Provide location of users through WiFi location service

Users open the mobile tourism APP to start the location service, the electronic map will displays their real-time location and accessed wireless AP

Tourists can enjoy the location inquiry service of the scenic spot by downloading the mobile APP

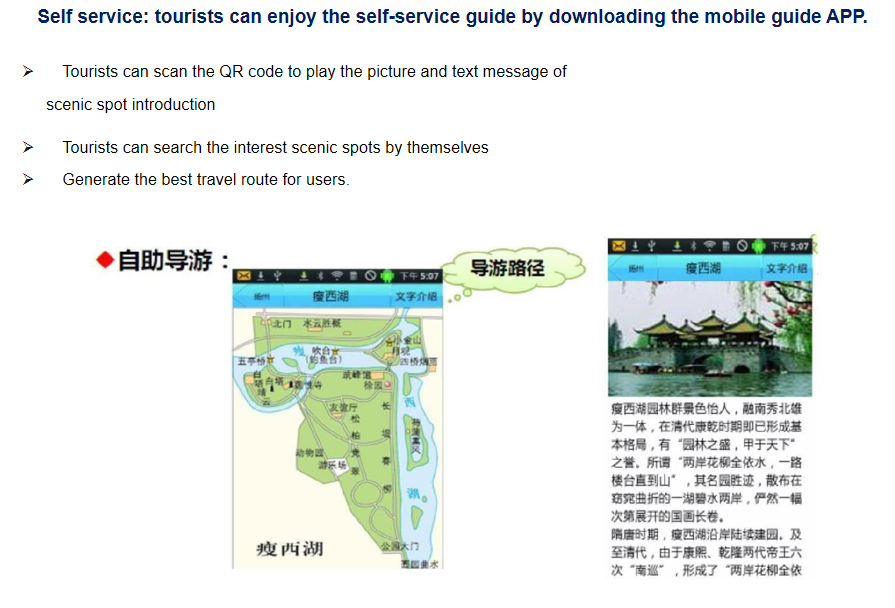

Self guided tour of scenic spots

Self service: tourists can enjoy the self-service guide by downloading the mobile guide APP.

• Tourists can scan the QR code to play the picture and text message of scenic spot introduction

• Tourists can search the interest scenic spots by themselves

• Generate the best travel route for users.

Scenic spot information inquiry

Food and beverage inquiry

• Provide store information

• Provide routing to store

• Navigation

Introduce of specialties

• Provide local specialty inquiry and introduction

• Provide tourists' comments on special products

• Tourists make their own evaluation

Online purchase

• Provide local store for specialty

• Integrate merchants that can provide online purchase and distribution

Information interaction

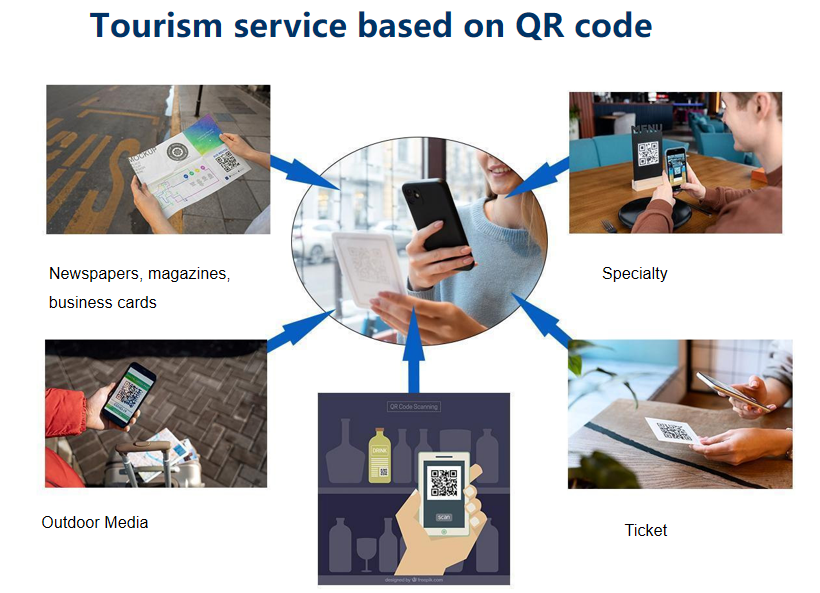

Tourism service based on QR code

4A: Any time, Anywhere, Any media, Any content

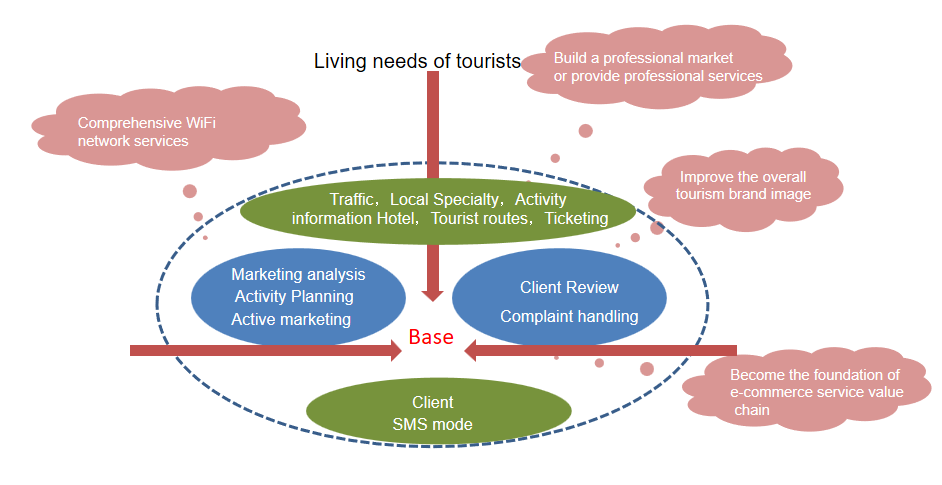

Application and promotion APP

Establish an e-marketing platform in the scenic spot. While users use WiFi, integrate the original resources of each platform through the APP software, wechat official account, etc., and form a scenic spot e-marketing platform focusing on the promotion of shop commodity, scenic spot, hotel, catering, and transportation.

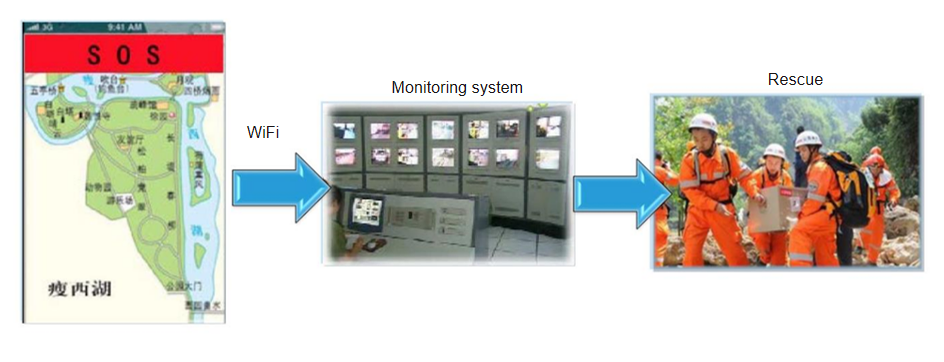

Tourist help

WiFi based positioning network

Tourists trigger one click for help, the system binds the position according to the signal sent by the caller, Provide the real-time location, so that the helpers can be found in the shortest time  and implemented emergency rescue service

Extended application

Tourism management and data acquisition system

• The tourism management and data acquisition system realizes the backstage management and data acquisition

• Collection of visitor flow

• Background management functions include system users, announcements, and reports to support tourism marketing strategies

• Background data collection includes general data collection and geographic information system data collection

Security monitoring system

① Real time monitoring function,  to monitor the important places, effectively protect the scenic spot and ensure the safety of tourists' lives and property

② Deal with emergencies in real time, and handle emergencies timely and effectively

③  Panoramic coverage enables remote monitoring

Reference Wi-Fi Products

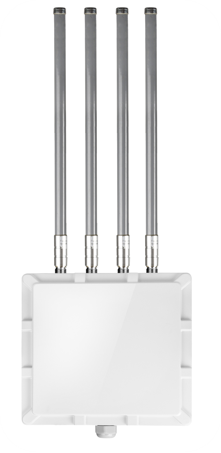

Outdoor AP                                                                    Indoor Wi-Fi Access Point

Key Features：                                                           Key Features

2.4GHz, support 802.11b/g/n/ac/ax                            5.8GHz, support 802.11a/n

RF power 27dBm                                                       RF power 27dBm

2*2MIMO, 3000Mbps                                                 2*2 MIMO 3000Mbps data rate

IP66 protection level                                                  Support 802.3at POE power

Optional high gain MIMO antenna                             Indoor wireless coverage 100 meters

Wireless coverage: 1km in open area.                       Working temperature: -20~45℃

128 users maximum

Built in 6KV surge protection

SFP port available

Reference Management Products

• Max to manage 1024pcs wireless AP

• 6 *10/100/1000Mbps WAN/LAN ports, multiple WAN function for Network overlay

• Support zero configuration in wireless AP

• Support load balance based on traffic and user quantity

• Automatically adjust AP RF power

• Automatically to adjust the channel

• Wireless seamless roaming, no packet loss

• Integrate multiple services based on QoS strategy

• Support multiple authentication
